Product Details
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Material: |
Bottle Flakes |
Strand: |
3 |
Type: |
Twisted |
Advantage: |
Stronger |
Power: |
190kw |
Name: |
Twisted Rope |
Width: |
2.6m |
Winder: |
33 Spindles |
Material: |
Bottle Flakes |
Strand: |
3 |
Type: |
Twisted |
Advantage: |
Stronger |
Power: |
190kw |
Name: |
Twisted Rope |
Width: |
2.6m |
Winder: |
33 Spindles |
PET Monofilament Machine For Stronger Twisted Rope Made By Bottle Flakes
Product Description:

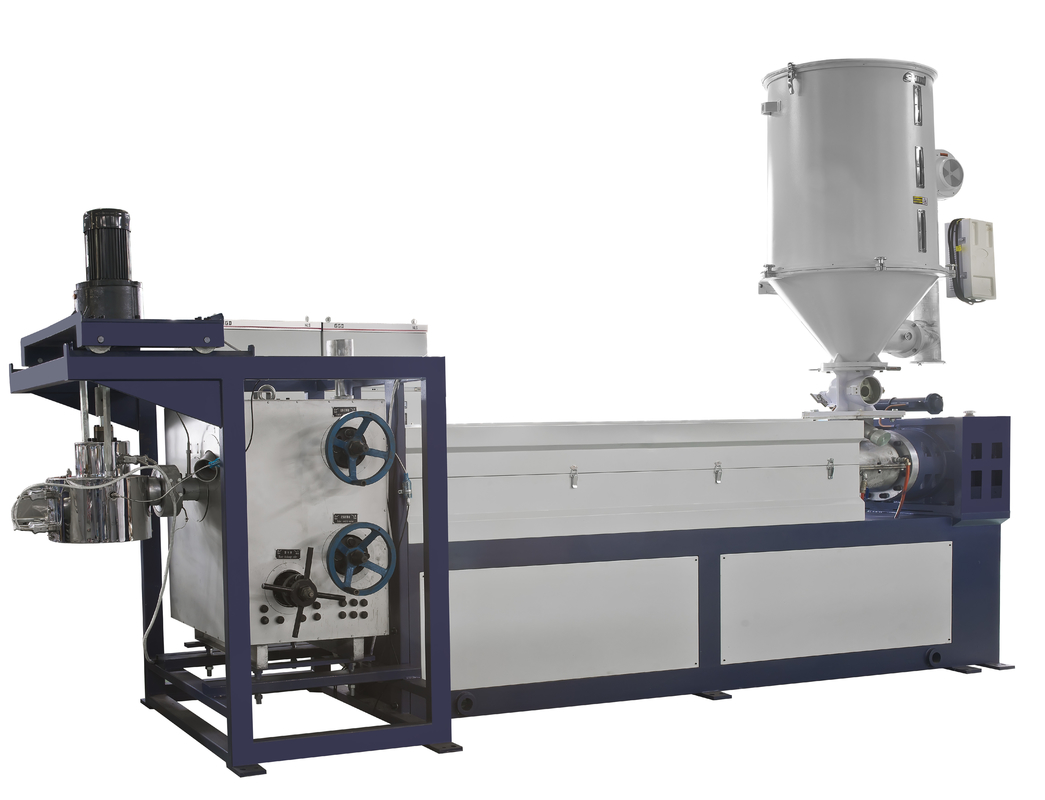

1. Extruder: 1 set
(1) Screw dia.: 85mm; Rotation speed: 0～80rpm,
(2) L:D: 30:1; Material of screw: 38CrMoALA;
The screw is special design for PET recylce material.
(3) Pressure feedback system to control screw speed..
(4) Melt filter: Melt filter changer with candles
(5) Spinneret device: 1 set
(6) Melt pump: 1 set
(7) Heater: Electric heating ring .
(8) Magnet basement: 1 set
2. Quenching Tank:1 set
(1) The tank is made by Stainless Steel 304.
(2) The horizontal pushing structure is conveniently to disassembly the spinneret.
3. First Seven roller Stretching unit: 1 set
(1) Seven pieces variable diameter roller with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly.
(3) Built-out oil lubrication system.
4. Hot water Tank:1 set
(1) Heating power: 70KW; Copper heating pipe
(2) Material is stainless steel 304 with heat preservation.
(3) Equip two pressing roller.
5. Second seven rollers stretching unit
(1) Seven pieces variable diameter roller with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly.
(3) Built-in oil lubrication system.
6. Spindle winder: 33 spindles
(1) Spool
(2) Winding bobbin as per clinet's reqeust.
(3) Tesnion control by inverter.
Parameter:
| Screw diameter | Φ90mm | ||
| Raw material | PET | Filament size | 300D |
| Capacity | 150Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 2 sets |
| Screw material | 38CrMoALA | Winder | 33 spindles |
| Max linear speed | 100m/min | Instillation power | 280Kw |
| Nozzle holes | 400 holes | Overall size | 30×2.65×3.0m |
Pictures:
