0.8mm 330kw Fishing Line Extrusion Super Strong Nylon Durable
Key Attributes
Product Summary
Fishing Line Extrusion For Super Strong Nylon Durable Fishing Line 0.8mm Product Description: 1. Extruder: 1 set (1) Screw diameter: 80mm, Rotation speed of screw: 0～80 rpm. (2) L:D: 30:1, Material of screw: 38CrMoALA , (3) Pressure automatic feedback system. (4) Cast aluminium barrel heater (5) ...
Product Details
330kw Fishing Line Extrusion
,0.8mm Fishing Line Extrusion
,0.8mm monofilament making machine
Fishing Line Extrusion For Super Strong Nylon Durable Fishing Line 0.8mm
Product Description:
1. Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～80 rpm.
(2) L:D: 30:1, Material of screw: 38CrMoALA ,
(3) Pressure automatic feedback system.
(4) Cast aluminium barrel heater
(5) Melt pump 1 set, rotation speed: 0-45 rpm.
(6) Round spinneret: 1 set.
2. Quenching tank: 1 set
3. Seven roller stretching unit A
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Working height: 1100mm
4. Hot water tank: 1 set
(1) Tank size: 4000mm
(2) Water removal device: 2 sets with suction.
5. Seven roller stretching unit B: 1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Equip 1 pressing roller.
(3) Working height: 1100mm
6. Double layers hot blast stretching oven: 1 set
(1) Oven length: 4000 mm
(2) Heating power 23kw×2
7. Seven roller stretching unit C: 1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Equip 1 pressing roller.
(3) Working height: 1100mm
8. Double layers hot blast stretching oven: 2 sets
(1) Oven length: 5000 mm
(2) Heating power 23kw×2
9. Seven roller stretching unit D: 1 set
(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Working height: 1100mm
10. Lubricating system: 1 set
11. Spindle winder: 24 spindles
(1) Winding motor: 15KG
Specification:
| Screw diameter | Φ80mm | ||
| Raw material | Nylon | Filament size | 0.08mm |
| Capacity | 50Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 24 spindles |
| Max linear speed | 80m/min | Instillation power | 330Kw |
| Nozzle holes | 20 | Overall size | 48×2.8×2.8m |

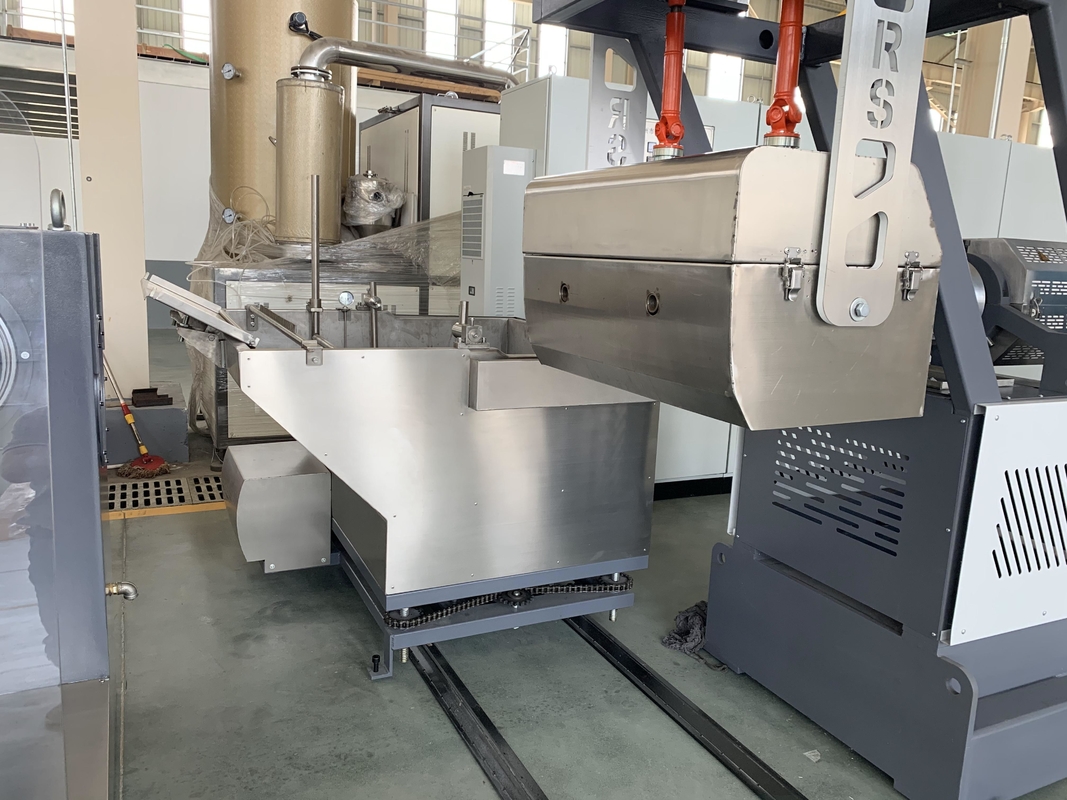

Picture:
