8 Strands Monofilament Extrusion Plant Monofilament Extruder Multifunction

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS90

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 30 working days

Payment Terms: L/C, T/T,

Supply Ability: 50 sets per year

Get Best Price
High Light:

multifunction monofilament extrusion plant

,

8 Strands monofilament extrusion plant

,

monofilament extruder

Raw Material:
PE
Capacity:
100kgh
Application:
Fishing Line
Strands:
8
Type:
Braided
Screw Diameter:
80mm
L:D:
33:1
Used In:
Saltwater
Raw Material:
PE
Capacity:
100kgh
Application:
Fishing Line
Strands:
8
Type:
Braided
Screw Diameter:
80mm
L:D:
33:1
Used In:
Saltwater
8 Strands Monofilament Extrusion Plant Monofilament Extruder Multifunction

Fishing Line Extrusion For 8 Strands PE Saltwater Braided Fishing Lines



Product Description:

1. Extruder: 1 set

(1) Screw diameter: 80mm, Rotation speed of screw: 0~80 rpm.

(2) L:D: 30:1, Material of screw: 38CrMoALA ,

(3) Pressure automatic feedback system.

(4) Cast aluminium barrel heater

(5) Melt pump 1 set, rotation speed: 0-45 rpm.

(6) Round spinneret: 1 set.



2. Quenching tank: 1 set



3. Seven roller stretching unit A

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2)  Working height: 1100mm



4. Hot water tank: 1 set

(1) Tank size: 4000mm

(2) Water removal device: 2 sets with suction.



5. Seven roller stretching unit B: 1 set

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Working height: 1100mm



6. Double layers hot blast stretching oven: 1 set

(1) Oven length: 4000 mm

(2) Heating power 23kw×2



7. Seven roller stretching unit C: 1 set

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Working height: 1100mm



8. Double layers hot blast stretching oven: 2 sets

(1) Oven length: 5000 mm

(2) Heating power 23kw×2



9. Seven roller stretching unit D: 1 set

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Working height: 1100mm



10. Lubricating system: 1 set



11. Winding machine



Specification:

Screw diameter Φ80mm
Raw material PE Max linear speed 100m/min
Capacity 50Kg/H Overall size 48×2.8×2.8m
Screw L:D 33:1 Stretching unit 2 sets
Screw material 38CrMoALA Instillation power 280Kw

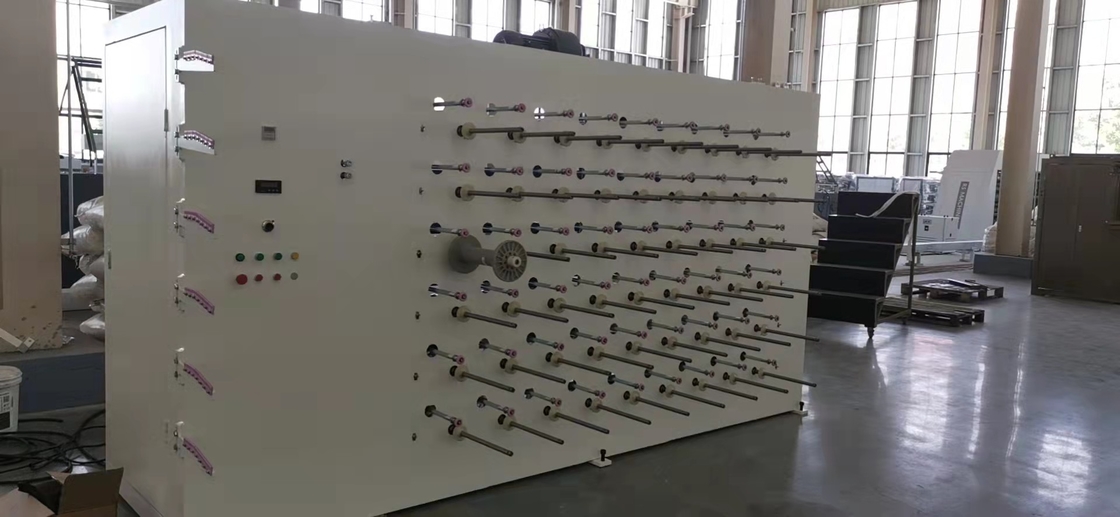

Picture:

8 Strands Monofilament Extrusion Plant Monofilament Extruder Multifunction 0
