330kw Tuna Fishing Line Extrusion Monofilament Yarn Making Machine

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS90

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 30 working days

Payment Terms: L/C, T/T,

Supply Ability: 50 sets per year

Get Best Price
High Light:

330kw Fishing Line Extrusion

,

Tuna Fishing Line Extrusion

,

330kw monofilament yarn making machine

Raw Material:
Nylon
Name:
Tuna Fishing Line
Application:
Fishing Line
Diameter:
2mm
Power:
330kw
Screw Diameter:
70mm
Type:
Long Line
Technics:
Transparent
Raw Material:
Nylon
Name:
Tuna Fishing Line
Application:
Fishing Line
Diameter:
2mm
Power:
330kw
Screw Diameter:
70mm
Type:
Long Line
Technics:
Transparent
330kw Tuna Fishing Line Extrusion Monofilament Yarn Making Machine

Fishing Line Extrusion For Transparent Long Line Tuna Fishing Line



Product Description:

1. Extruder: 1 set

(1) Screw diameter: 80mm, Screw speed: 0~80 rpm.

(2) L:D: 30:1, Material of screw: 38CrMoALA.

(3) Pressure automatic feedback system.

(4) Melt pump 1 set, rotation speed: 0-45 rpm.

(6) Round spinneret: 1 set.



2. Quenching tank: 1 set



3. Seven roller stretching unit A: 1 set

(1) Seven variable diameter rollers.

(2) Steel box with accurately grind gear.

(3) Working height: 1200mm



4. Hot water tank: 1 set

(1) Tank size: 4000mm

(2) Water removal device: 2 sets with suction.



5. Seven roller stretching unit B: 1 set

(1) Seven variable diameter rollers made by steel pipe.

(2) Reducer from Zhejiang Tongli

(3) Equip 1 pressing roller.

(4) Working height: 1200mm



6. Double layers hot blast stretching oven: 1 set

(1) Oven length: 4000 mm

(2) Heating power 23kw×2



7. Seven roller stretching unit C, with brake resistor

(1) Seven variable diameter rollers made by steel pipe.

(2) Equip 1 pressing roller.

(3) Working height: 1200mm

(4) Reducer from Zhejiang Tongli



8. Double layers hot blast stretching oven: 2 sets

(1) Oven length: 5000 mm

(2) Heating power 23kw×2



9. Seven roller stretching unit D: 1 set

(1) Seven variable diameter rollers made by steel pipe.

(2) Steel structure box with accurately grind gear.

(3) Working height: 1200mm

(4) Reducer from Zhejiang Tongli



10. Lubricating system: 1 set



11. Spindle winder: 60 spindles

(1) Winding motor: 15KG



Specification:

Screw diameter Φ80mm
Raw material Nylon Filament size 2mm
Type signle exruder Filament shape round
Screw L:D 30:1 Stretching unit 4 sets
Screw material 38CrMoALA Winder 60 spindles
Max linear speed 100m/min Instillation power 350Kw
Nozzle holes 50 Overall size 50×2.8×2.8m

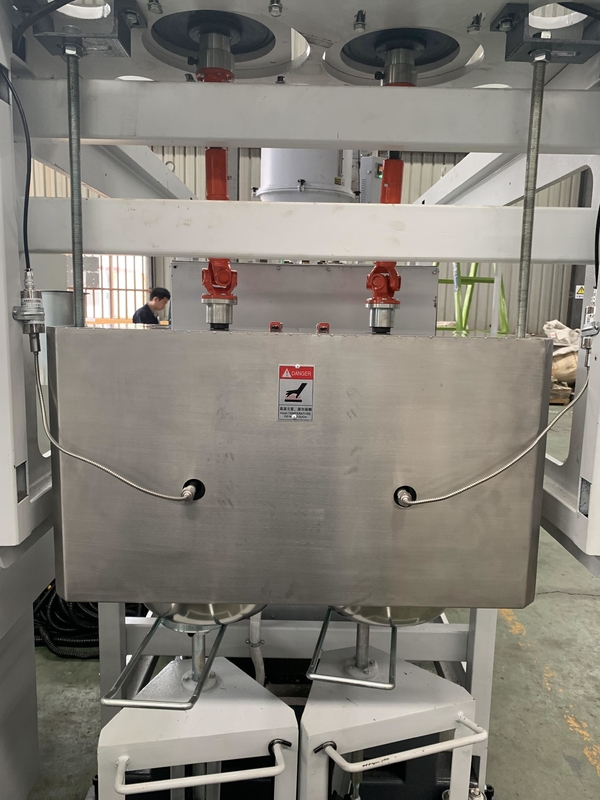

Picture:

330kw Tuna Fishing Line Extrusion Monofilament Yarn Making Machine 0
