Twisted Monofilament Making Machine

Basic Information
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS120
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T,
Supply Ability: 50 sets per year
Detail Information
Density: 0.91g/cm3 Raw Material: PP
Feature: Anti-cracking Agent Application: Concrete Fiber
Package: In Bags Control: PLC
Technics: Twisted Package: Bundle
High Light:

LEAP monofilament making machine

,

Twisted monofilament making machine


Product Description

PP Monofilament Making Machine For Twisted Bundle Concrete Fiber



Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90 mm, Rotation speed of screw: 0~60 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA; The screw is suitable for PP Virgin.

(3) Material of barrel heater: Cast aluminium with stainless steel insulation layer which makes the heating evenly and high efficiency

(4) Equip 100kg stainless steel hopper

(5) Electric heating round spinneret: 1 set

(6) Ceramic heating rings for spinneret with SS insulating layer make the heat evenly.

(7) Metering pump 100cc/rpm, rotation speed: 0-40 rotation.



2. Cooling water tank: 1 set

(1) Material of distributing roller: stainless steel

(2) Side Push-pull model.



3. Seven roller stretching unit A

(1) Seven roller variable diameter rollers, Five rubber roller.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Built-out oil lubrication system which makes the gears runs steady.



4. Double layer hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×4 sets

(2) Heating power: 23KW×2

(3) Oven length: 4000 mm

(4) Special design of hot air channel.



5. Seven roller stretching unit B.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.



6. Single layers hot blast stretching oven: 1 set

(1) Fan power of each oven: 2.2KW×2 sets

(2) Heating power: 30KW

(3) Oven length: 5000mm

(4) Special design of hot air channel.



7. Seven roller stretching unit C.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.



8. Waster yarn collectors: 1 set

(1) Torque motor power: 80KG.cm



9. Spool winder:.



11. Overall size: 40000×1800×2500mm



12. Total weight: 28T



Specification:

Screw diameter Φ90mm
Raw material PP Filament size customzied
Capacity 120Kg/H Filament shape profile
Screw L:D 33:1 Stretching unit 3 sets
Screw material 38CrMoALA Instillation power 250Kw250Kw
Max linear speed 100m/min Overall size 37×2.7×2.8m


Pictures:

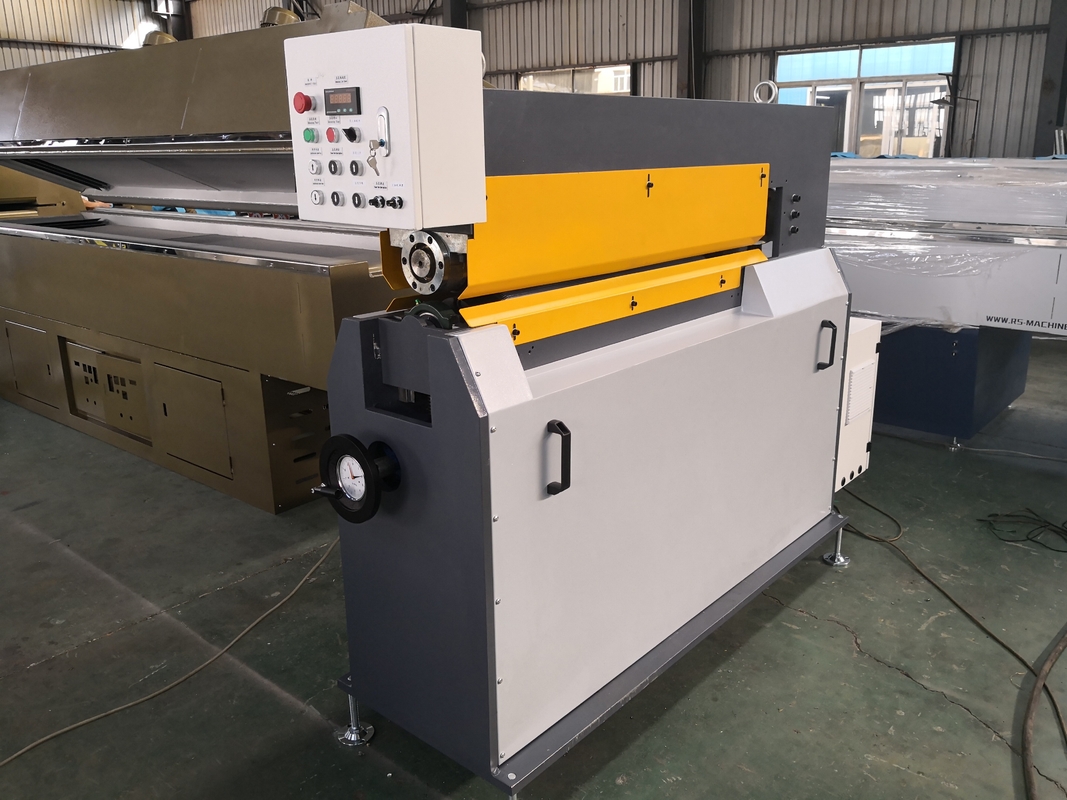

Twisted Monofilament Making Machine 0
