Product Details
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 60 sets per year
Material: |
PA6 |
Yarn Diameter: |
0.08mm |
Capacity: |
8kgh |
Application: |
Makeup Brush |
Length: |
49m |
Oven: |
3 Sets |
Ends: |
228 |
Tank: |
2 Sets |
Material: |
PA6 |
Yarn Diameter: |
0.08mm |
Capacity: |
8kgh |
Application: |
Makeup Brush |
Length: |
49m |
Oven: |
3 Sets |
Ends: |
228 |
Tank: |
2 Sets |

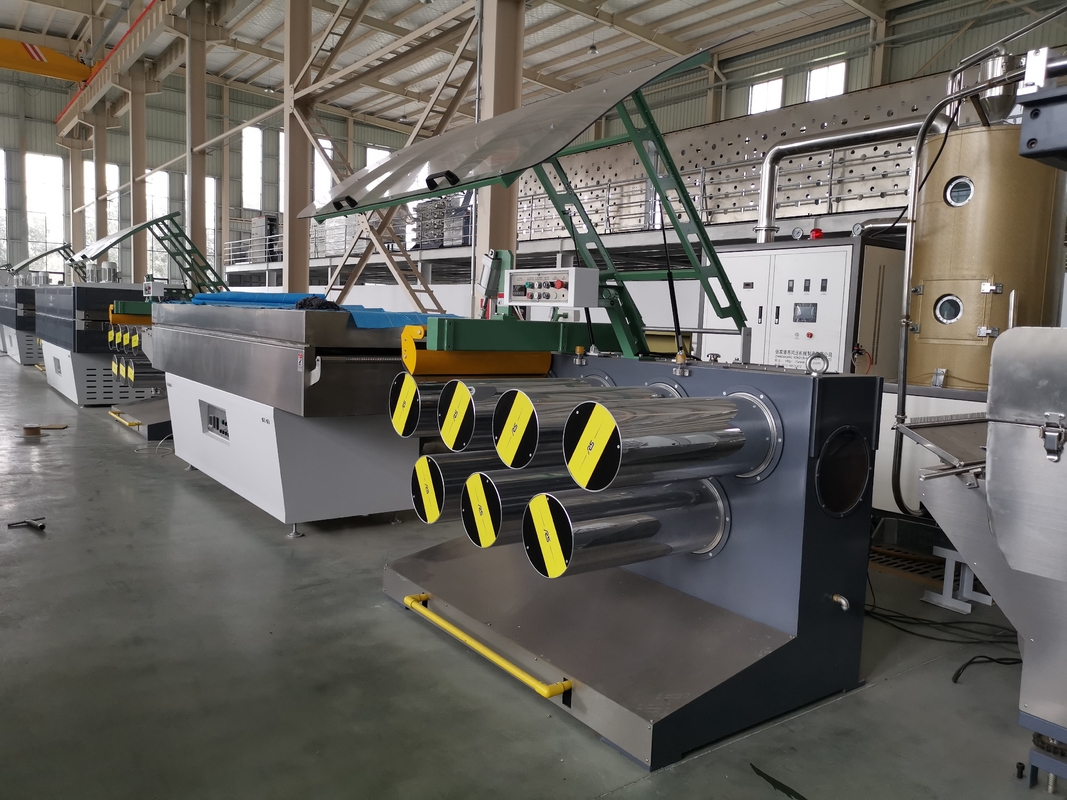

PA Monofilament Extruder Machine for Makeup brush 0.08mm 8kgh
Product Description:
1. Extruder
(1) Screw diameter: 50mm; Rotation speed: 0～72rpm.
(2) L:D: 30:1; material of screw: 38CrMoALA ；
The screw structure is special designed for PA6 chips..
(3) Pressure automatic feedback system can adjust the screw speed automatically to make sure the uniform of yarn.
(4) Screw heater: Far infarad.
(5) Spinneret device: 1 set
(6) Heater: Electric heating ring to ensure the temperature stabilization.
(7) Metering pump, rotation speed 0-45rpm.
(8) Two hopper doser: 1 set
2. Queching tank: 1 set
(1) The tank is made by stainless steel 304.
(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.
4. The first seven roller stretching unit
(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly.
No rubber roller.
(4) Reducer is from Zhejiang Tongli Reducer Co., Ltd.
(5) Built-out oil lubrication system which makes the gears run steady.
5. Hot blast stretching oven.
(1) Oven length: 4000mm
(2) Heating power: 22.5kw, electric heating.
6. The second seven roller stretching unit
(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly.
No rubber roller.
(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.
7. Single layers hot blast annealing oven
(1) Fan power: 2.2KW×2 sets.
(2) Heating power: 22.5KW
(3) Special design of hot air channel which make the temperature evenly.
8. The third seven roller stretching unit
(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.
(2) Steel cabinet with accurately grind gear makes the roller run smoothly. No rubber roller.
(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.
9. Lubricating system: 1 set
(1) Frequency control of speed
10. Semi-auto winding collector
(1) Winding frame length is as per customer’s request.
(2) Winding motor: 0.37KW
12. Electrical control system: 1 set
13. Overall size: 49000×2600×2100mm
14. Installation power: 185kw
Parameter:
| Screw diameter | Φ50mm | ||
| Raw material | PA6 | Filament size | 0.08mm |
| Capacity | 8Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 240 spindles |
| Max linear speed | 160m/min | Instillation power | 185Kw |
| Nozzle holes | 216 holes | Overall size | 49×2.6×2.1m |
