PP Danline Monofilament Extruder Machine For Weaving Fabric 900-6000 Denier
Key Attributes
Product Summary
PP Danline Monofilament Extruder Machine For Weaving Fabric 900-6000 Denier Machine components: 1. Extruder: 1 set 2. Quenching tank: 1 set 3. Frist Seven roller stretching unit 4. Double layer hot blast stretching oven: 2 sets 5. Second Seven roller stretching unit . 6. Single layers hot blast ...
Product Details
900 Deiner Monofilament Extruder Machine
,PP Danline Monofilament Extruder Machine
,PP Danline monofilament extrusion line
PP Danline Monofilament Extruder Machine For Weaving Fabric 900-6000 Denier
Machine components:
1. Extruder: 1 set
2. Quenching tank: 1 set
3. Frist Seven roller stretching unit
4. Double layer hot blast stretching oven: 2 sets
5. Second Seven roller stretching unit .
6. Single layers hot blast stretching oven: 1 set
7. Third Seven roller stretching unit .
8. Waster yarn collectors: 1 set

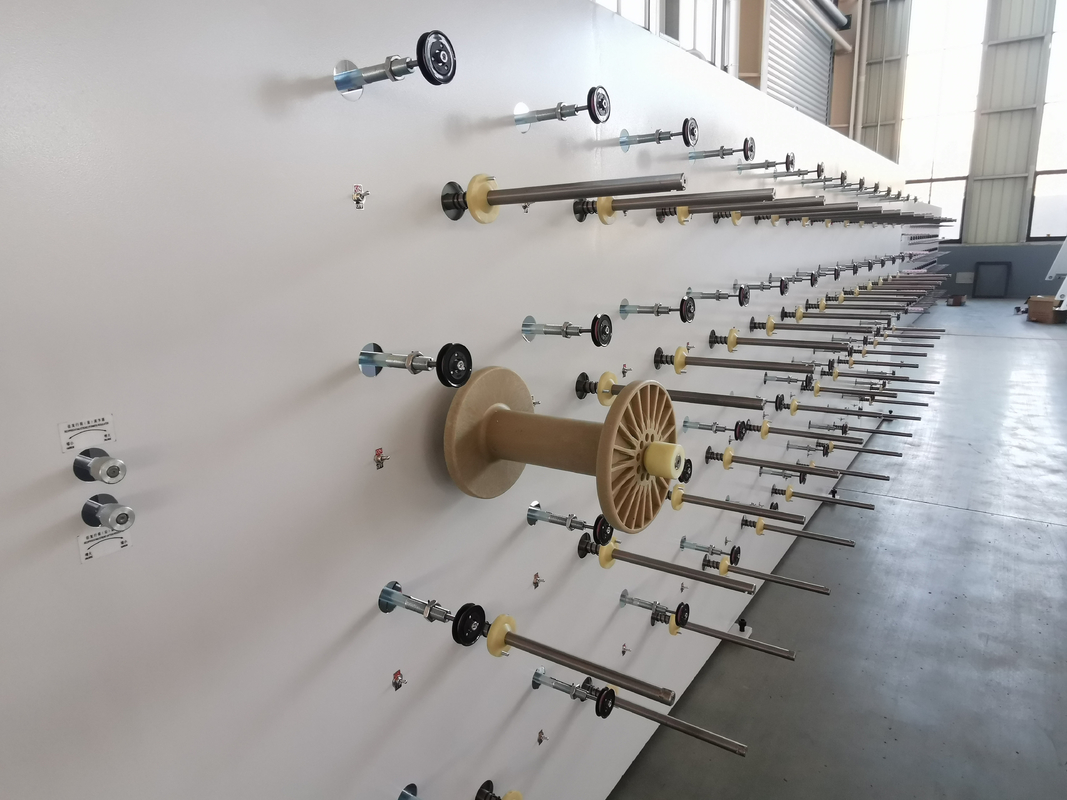

9. Spindle winder: 150 spindles
Specification list:
|
Screw diameter |
Φ110mm | ||
|
Raw material |
PP chips |
Filament size |
900-6000D |
|
Capacity |
250Kg/H |
Filament shape |
flat |
|
Screw L:D |
33:1 |
Stretching unit |
2-3unit |
|
Screw material |
SACM645 |
Winder |
Tube |
|
Max linear speed |
150m/min |
Instillation power |
350Kw |
|
Nozzle holes |
145 |
Overall size |
40×2.8m×3m |
Pictures:
