1-4mm PET Monofilament Machine Monofilament Extruder For Support Wire

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS90

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

1mm PET Monofilament Machine

,

Support Wire PET Monofilament Machine

,

1mm monofilament extruder

Raw Material:
PET Recycle
Application:
Support Wire
Yarn Diameter:
1-4mm
Screw:
90mm
Main Motor:
55kw
Filament:
6 Ends
Capacity:
150kg Per Hour
Max Speed:
120m/min
Raw Material:
PET Recycle
Application:
Support Wire
Yarn Diameter:
1-4mm
Screw:
90mm
Main Motor:
55kw
Filament:
6 Ends
Capacity:
150kg Per Hour
Max Speed:
120m/min
1-4mm PET Monofilament Machine Monofilament Extruder For Support Wire

PET Monofilament Extruder Machine For Support Wire 1-4mm 150kgh



Product Description:



1. Extruder: 1 set

Screw dia.: 90mm; Rotation speed: 0~100rpm, Screw manufacturer: Zhejiang Zhoushan

(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET recycle

(3) 70cc Metering pump:1 set

(4) Spinneret device: 1 set



2. Quenching tank: 2 sets

(1) The tank is made by stainless steel 304.

(2) Air chiller: as customer's request.



3. Seven roller Stretching unit A, 0-40m

(1) Roller size: φ270×450×7,

(2) Power of motor: 7.5KW

(3) Driving motor and reducer is from Zhejiang Tongli Co., Ltd.



4. Hot water Tank:1 set

(1) Water tank length: 4000mm

(2) Heating power: 35KW; Electrical heating, the heating pipe are in the tank.

(3) Material is stainless steel 304 with heat preservation.

(4) Equip brush for water removal.

(5) Equip one moisture absorption device



5. Seven rollers stretching unit B: 0-160m

(1) Roller size: φ270×450×7,

(2) Power of motor: 11KW

(3) Driving motor and reducer is from Zhejiang Tongli Co., Ltd.



6. Single layers hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 22.5KW

(3) Oven length: 4300 mm

(4) Special design of hot air channel which make the temperature evenly.



7. Seven rollers stretching unit C: 0-180m

(1) Roller size: φ270×450×7

(2) Power of motor: 11KW

(3) Driving motor and reducer is from Zhejiang Tongli Co., Ltd.



8. Single layers hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 22.5KW

(3) Oven length: 5000 mm



9. Seven rollers stretching unit D

(1) Roller size: φ270×450×7

(2) Power of motor: 7.5KW

(3) Driving motor and reducer is from Zhejiang Tongli Co., Ltd.





10. Lubricating system: 1 set

(1) Motor and reducer are from Taiwan CPG



11. Winding collector:8 spindles

(1) Tube size according to the customer’s requirements.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) Winding motor: 15KG



total capacity: 230KW,

total dimension: 38×2.6×2m,

total weight: 20T



Specification:

Screw diameter Φ90mm
Raw material PET recycle Filament size 1-4mm
Capacity 150Kg/H Filament shape round/profile
Screw L:D 30:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder 10 spindles
Max linear speed 120m/min Instillation power 260Kw
Nozzle holes 6 Holes Overall size 38×2.6×2m






Pictures:

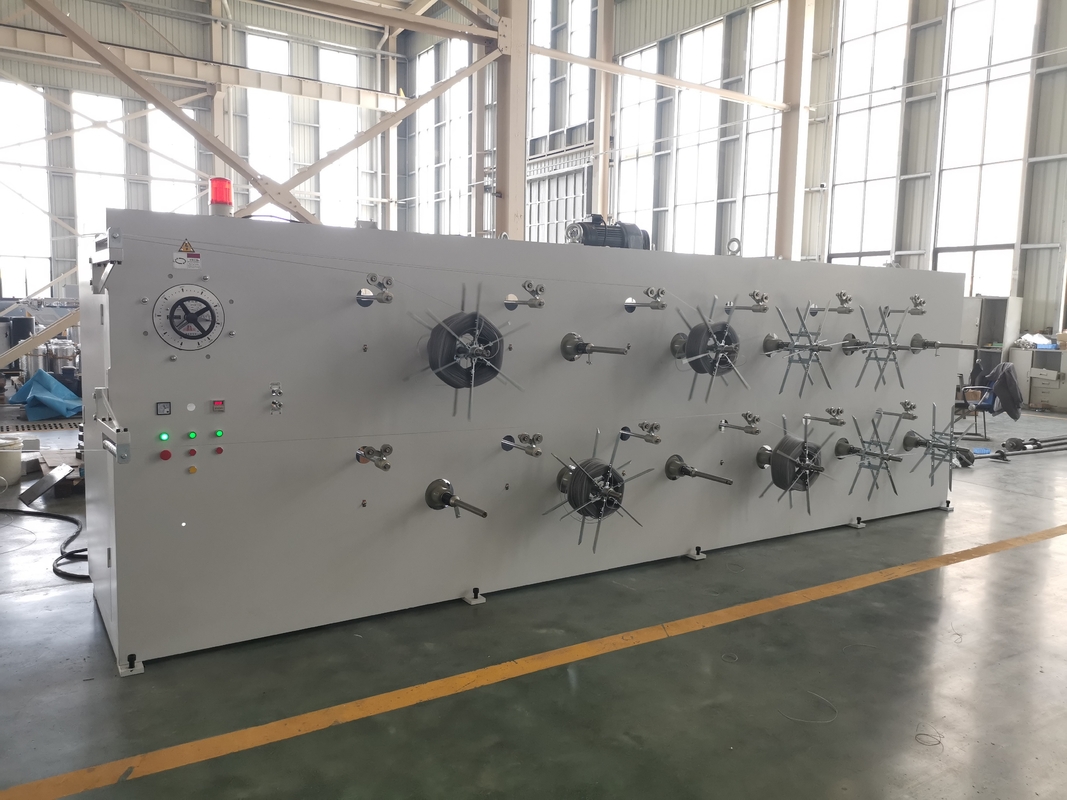

1-4mm PET Monofilament Machine Monofilament Extruder For Support Wire 0
