PP Monofilament Extrusion Line For Twisted Floating Rope 3/4 Strands 10mm

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Get Best Price
High Light:

3/4 Strands PP Monofilament Extrusion Line

,

10mm PP Monofilament Extrusion Line

,

3/4 Strands monofilament extrusion plant

Application:
Twisted Floating Rope
Material:
PP
Strands:
3/4
Rope Diameter:
210mm
Screw Diamter:
100mm
Power:
250 Kw
Oven:
2 Sets
Yarn Diameter:
0.25mm
Application:
Twisted Floating Rope
Material:
PP
Strands:
3/4
Rope Diameter:
210mm
Screw Diamter:
100mm
Power:
250 Kw
Oven:
2 Sets
Yarn Diameter:
0.25mm
PP Monofilament Extrusion Line For Twisted Floating Rope 3/4 Strands 10mm

Monofilament Extrusion Line For Twisted Floating PP Rope 3/4 Strands 10mm

Parameter:

Yarn diameter: 0.25mm
Capacity: 4 tons
Screw diameter: 90mm
Rotation speed of screw: 0~72 rpm
Running capacity: 100 KW


Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0~80 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Filter: Manual/Auto filter changer.

(4) Pressure automatic feedback system can adjust the screw speed automatically.

(5) Material of barrel heater: Cast aluminums with stainless steel insulation layer to save the electrical consumption.

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Electrical heating round spinneret: 1 set



2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.



3. Drying system:1 set

4. Seven roller stretching unit A

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.



5. Double layers hot blast stretching oven: 1 set

(1) Heating power: 23KW

(2) Oven length: 5000 mm



6. Seven roller stretching unit B

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.



7. Spindle winder

(1) Bobbin size : 8 inch tube.





​Pictures:

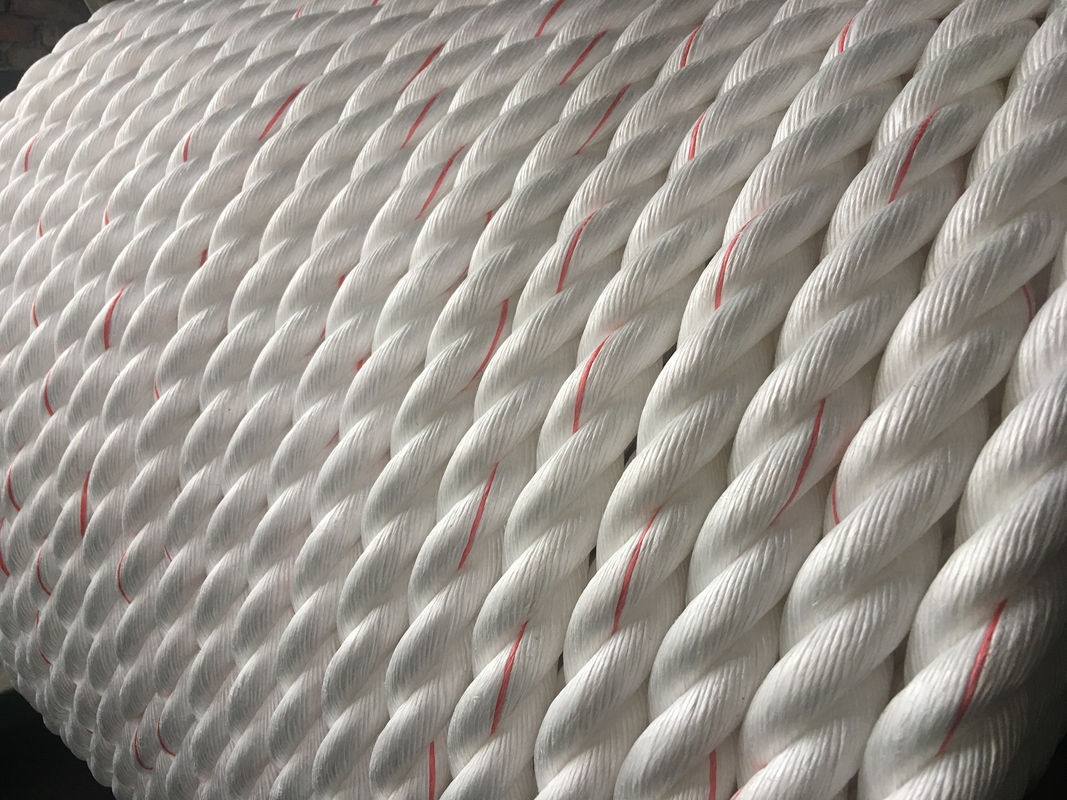

PP Monofilament Extrusion Line For Twisted Floating Rope 3/4 Strands 10mm 0
