30KW PP Monofilament Extrusion Line Monofilament Extruder Machine For Artificial Turf

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

Turf PP monofilament extrusion line

,

30KW PP monofilament extrusion line

,

30KW Monofilament Extruder Machine

Material:
PP
PLY:
4
Screw:
70mm
Capacity:
100kg Per Hour
Texturing:
Air Type
Winder:
24 Spindles
Speed:
250m/min
Color:
As Customer's Request
Material:
PP
PLY:
4
Screw:
70mm
Capacity:
100kg Per Hour
Texturing:
Air Type
Winder:
24 Spindles
Speed:
250m/min
Color:
As Customer's Request
30KW PP Monofilament Extrusion Line Monofilament Extruder Machine For Artificial Turf

PP Monofilament Extrusion Line For Curly Yarns Artificial Turf Sport Grass For Hockey Field



Product Description:



1. 70×33 Extruder:2 sets

(1) Main motor power: 30KW;

(2) Screw diameter: 70mm;

(3) L:D: 33:1; Material of screw: 38CrMoALA

(4) Rotation speed of screw: 0~80rpm

(5) Hard tooth-faced speed reducer: Jiangsu Haoke Gearbox group.

(6) Pressure automatic feedback system can adjust the screw speed automatically.

(7) Metering pump:2 sets, Spinneret: 1 set, components: 2 sets

(8) Static mixer: 1 set

(9) Automatic screen changer: 1 set



2. Cooling water tank: 1 set

(1) The tank is made by stainless steel 304.

(2) The height of tank is adjustable by motor and the horizontal pushing structure is conveniently to disassembly the spinneret.



3. Seven roller stretching unit A, 0-120m/min: 1 Set

(1) Steel roller size: φ270×700×7 The 7 rollers are made by SS 304 with hard chrome plating.

(2) The stretching unit is covered with stainless steel 304 plate to prevent the water.



4. Hot water tank: 1 set

(1) Tank length:4000mm

(2) The water is heated by copper heating tube, the heating power: 50kw,



5. Water removal system with moisture absorption: 1 set



6. Seven roller stretching unit B,0-350m/min: 1 Set

(1) Steel roller size: φ350×700×7.

(2) The stretching unit is covered with stainless steel 304 plate to prevent the water.



7. Waster yarn collector system: 1 set

(1) Motor power: 7.5KW



8. Air texturing machines: 24 ends

Specification for each end:

(1) Gas heating barrel:1 sets

(2) Main conveying pipe:1 set,

(3) Heating roller and drive: 2 sets, frequency control.

(4) Tension roller: 2 sets, aluminum oxide processing



9. Conveyer device: 3 sets+1 piece

(1) 1 set includes 4 working position.



10. Automatic tension feedback winder: 13 spindles

(1) Motor of tension roller:0.5kw

(2) Winding motor:0.25kw





Parameter:

Screw diameter Φ70mm
Raw material PP Filament size 800D
Capacity 100Kg/H Filament shape Curly
Screw L:D 33:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 24 spindles
Max linear speed 200m/min Instillation power 250Kw
Nozzle holes 180 holes Overall size 40×2.8×2.8m


Pictures:

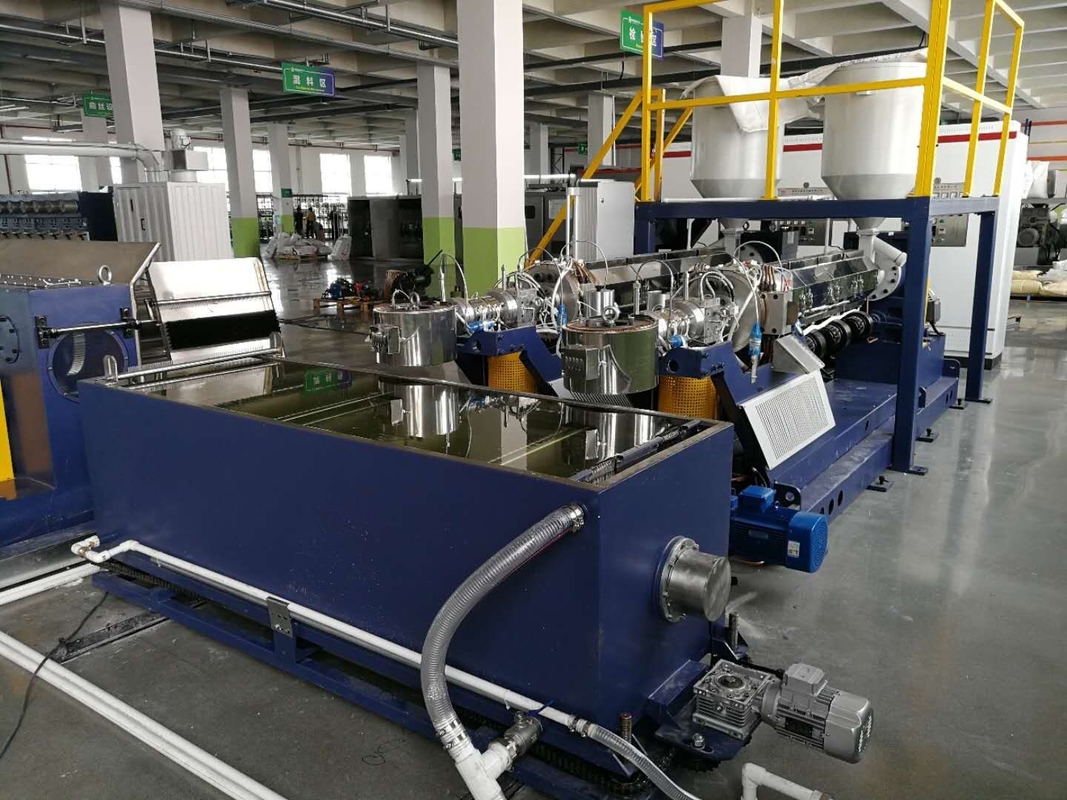

30KW PP Monofilament Extrusion Line Monofilament Extruder Machine For Artificial Turf 0
