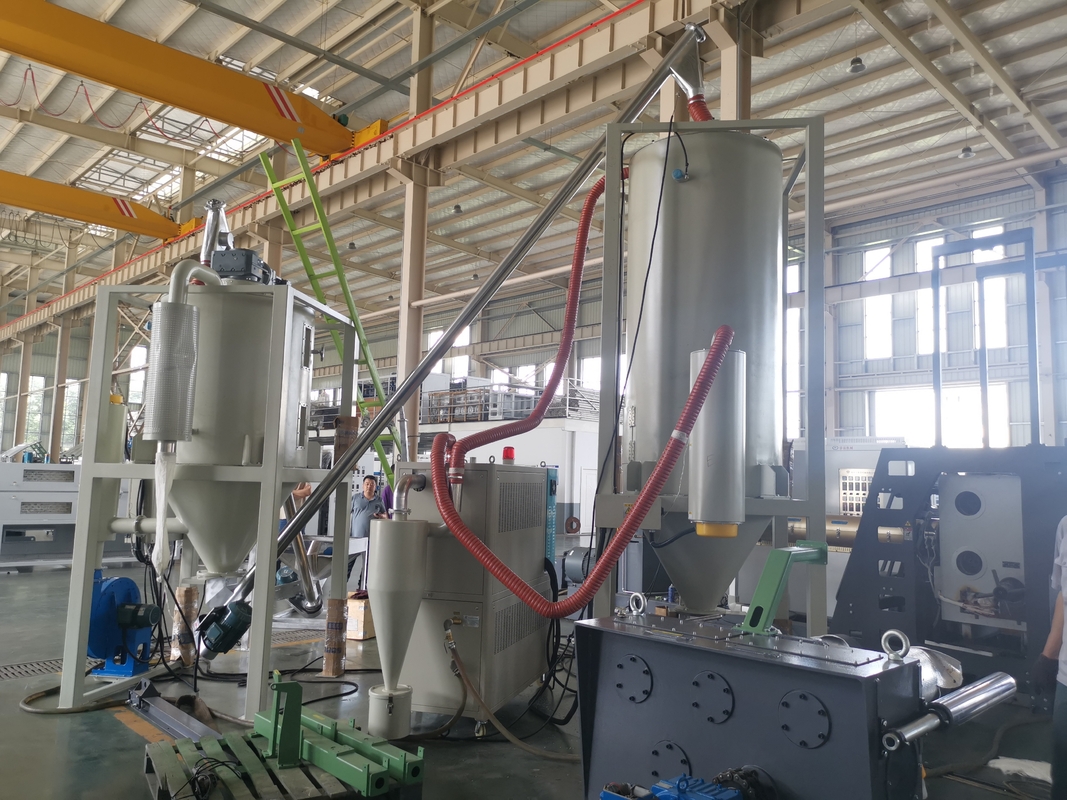

200 Degrees Crystallized Dehumidification Dryer Hot Air Drying Oven
Key Attributes
Product Summary
Monofilament Extrusion Line Crystallized Dehumidifier Dryer For PET Recycle Or Virgin Standard Configurations 1. Honeycomb rotor: Sweden SAT 2. Dew point monitor: Finland Vaisala (Options) 3. Circulating air condenser: Efficient finned heat exchanger 4. Drying blower: Domestic 5. Regeneration blower...
Product Details
200 degrees dehumidification dryer
,Crystallized Dehumidification Dryer
,Crystallized hot air drying oven
Monofilament Extrusion Line Crystallized Dehumidifier Dryer For PET Recycle Or Virgin
Standard Configurations
1. Honeycomb rotor: Sweden SAT
2. Dew point monitor: Finland Vaisala (Options)
3. Circulating air condenser: Efficient finned heat exchanger
4. Drying blower: Domestic
5. Regeneration blower: Domestic
6. Circulating air heater:Stainless steel magnesium powder heater
7. Filter element: Domestic
8. Rotor synchronous belt: Mitsubishi
9. Rotor driving motor: TWT Infinitely variable speed
10. Speed reducer: GT reducer
11. Air switch: Mitsubishi
12. Drying hopper: Internal stainless steel(Double insulation)
13. Crystallization hopper : Internal stainless steel(Double insulation)
14. Mixing blade: Stainless steel 304
15. Material level meter: Rotary Stainless steel
16. Dust separator: HUANQIU
Specification:
| Raw material | PET bottle flakes | Dry time | 6 hours |
| Capacity | 130 Kg/h | Blower power | 4kw |
| Heater power | 30kw | Stretching unit | None |
| Rotate motor | 17.5kw | Drying hopper | 2000L |
| Crystallization hopper | 800L | Mixing motor | 3kw |
Pictures:
