DIN200 Spindle Winder Of Monofilament Yarn Making Machine

1. Extruder: 2sets

(1) Screw diameter: 70mm.

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Rotation speed of screw: 1～80 rpm.

(4) Auto belt screen changer, the screen is 100mm.

(5) Metering pump: 2 sets

(6) Static mixer: 2 sets.

(7) Spinneret: 2 sets.

2. Cooling water tank

(1) The tank is made by SS 304 with one light and safety shield.

(2) There are double ceramic roller guiders which are adjustable.

(3) Pushed and pulled in side way.

3. Five roller stretching unit A, 0-35m/min

(1) Motor power: 7.5kw

(2) The steel structure box with accurately grind gear makes the rollers run smoothly.

4. Hot water tank

(1) Overall size: 4000×1300×1100 mm

(2) Heating method: electric heating

(3) Inside of the tank is made by SS 304 with insulating layer.

(4) High-pressure air-knife drying system

5. Oiling heating five roller stretching unit B, 0-160m/min

(1) 4 heating roller and working width 1300mm

(2) Standard heater has self-protective and alarm function.

(3) Driving motor and reducer: 15kw

(4) The steel structure box with accurately grind gear makes the rollers run smoothly.

6. Double layers hot blast stretching oven: 1 set

(1) Working area: 5000mm L×1350mm W.

Heating power: 35KW×2, the circulating fan: 4Kw×4.

(2) Frequency control speed of blast capacity. Temperature control range: 0-200 degree.

(3) Heating control system

7. Three roller setting unit C, 0-160m/min

(1) Two cooling roller:φ318×1300×3,standard rotary joint.

(2) Driving motor and reducer: 7.5kw

(3) 1 piece rubber roller, the effect width: 1200mm.

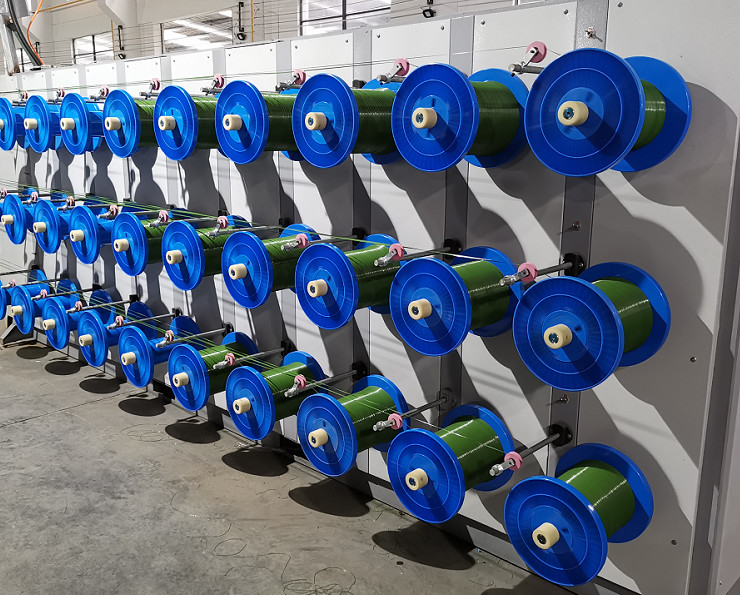

8. Spindle winder: 64 spindles

(1) Constant tension magnetic disk deviation transmission.

(2) Winding motor: 250w.

(3) Each winder collets 4 pieces yarn.

9. Waster yarn collector
