0.12-0.25mm HDPE Monofilament Extrusion Line Knotless Bird Net

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS70

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

0.12mm Monofilament Extrusion Line

,

0.25mm Monofilament Extrusion Line

,

0.25mm plastic filament extruder

Material:
HDPE Chips
Yarn Diameter:
0.12-0.25
Application:
Bird Net
Net:
Knotless
Screw Diameter:
70mm
Motor Power:
150kw
Length:
37 Meters
Color:
White
Material:
HDPE Chips
Yarn Diameter:
0.12-0.25
Application:
Bird Net
Net:
Knotless
Screw Diameter:
70mm
Motor Power:
150kw
Length:
37 Meters
Color:
White
0.12-0.25mm HDPE Monofilament Extrusion Line Knotless Bird Net

Monofilament Extrusion Line For HDPE Knotless Bird Net 0.12-0.25mm 50kgh



Product Description:



1.70×33 Extruder: 1 set
(1) Screw diameter: 70mm,
Rotation speed of screw: 0~72 rpm.
(2) L:D: 33:1, Material of screw: 38CrMoALA;
The screw is suitable for HDPE chips
(3) Manual filter change:1 set
(4) RKC Pressure automatic feedback system which can adjust the screw speed automatically
(5) Material of barrel heater: Cast aluminium with stainless steel insulation layer.
(6) Electric heating round spinneret: 1 set
(7) Eeramic heating rings for spinneret.
(8) Spinneret components: 2 sets with disassembly support for spinneret discreteness
(9) Metering pump, rotation speed: 0-40 rotation. Driving power: 4KW.



2.Cooling water tank: 1 set
(1) The tank is made by SS 304.
(2) Material of distributing roller: stainless steel


3.Seven roller stretching unit A
(1)Seven viable diameter rollers, there are five rollers are covered with rubber to resist skidding.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

4.Hot water tank:1 set
(1) Heating power: 27kw, two zones heater.
(2) Double pressure rollers with twin cylinder opening system which is controlled by electromagnetic valve.
(3) Water removal device.


5.Seven roller stretching unit B
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

6. Single layer hot blast annealing oven: 1 set
(1) Fan power: 2.2KW×2 sets
(2) Heating power: 23KW
(3) Oven length: 5000 mm

7.Seven roller stretching unit C.
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.


8. Warping winder: 3 sets, 6 spindles
1) The beam size is according to customer’s requirements.



Parameter:



Screw diameter Φ70mm
Raw material HDPE Chips Filament size 0.12-0.25mm
Capacity 50Kg/H Filament shape round
Screw L:D 33:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder 6 spindls
Max linear speed 150m/min Instillation power 150Kw
Nozzle holes as client's request Overall size 37×2.8×2.8m



Pictures:

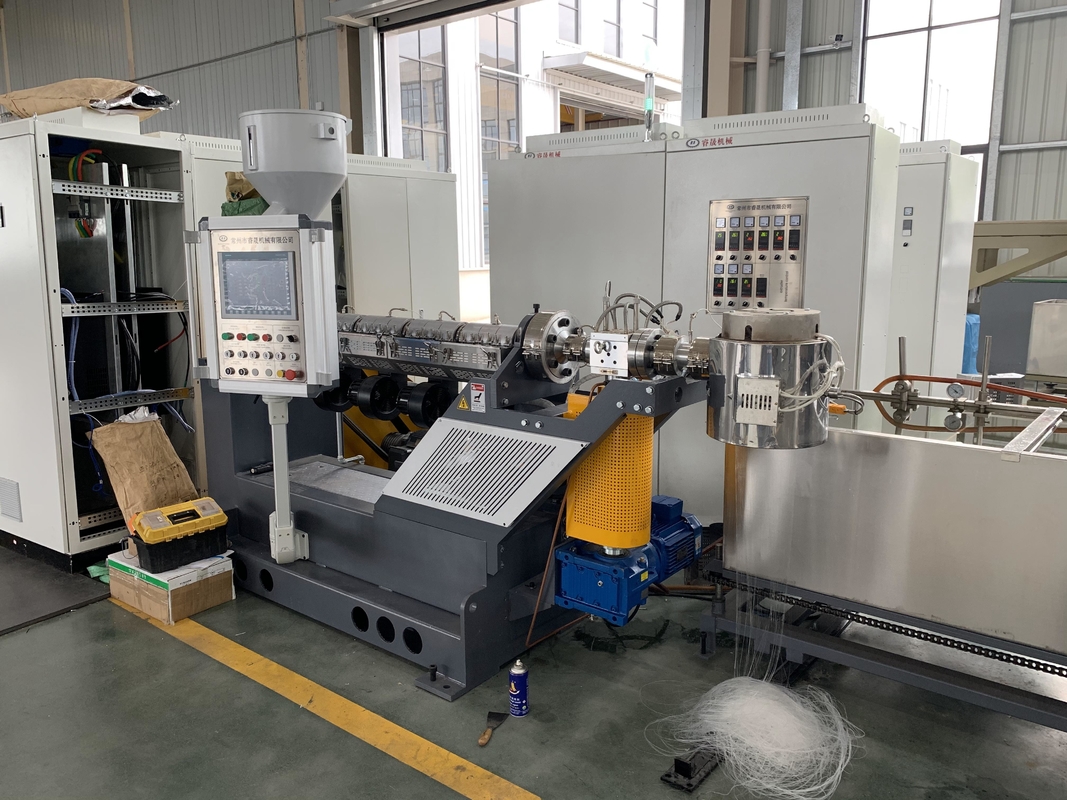

0.12-0.25mm HDPE Monofilament Extrusion Line Knotless Bird Net 0
