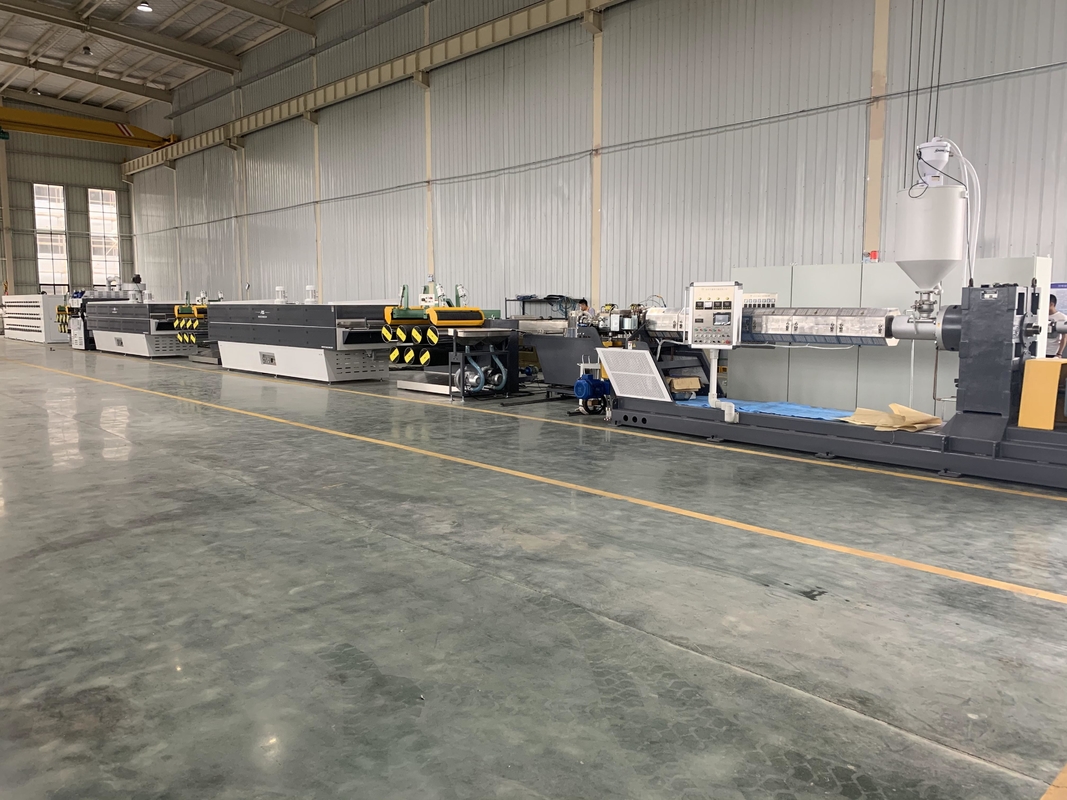

800-1000 Denier Monofilament Extruder Machine PP Woven Fabric Making

Monofilament Extrusion Line For PP Woven Fabric On Sulzer Loom 800-1000 Denier

Machine components:

1. Extruder: 1 set

(1) Screw diameter: 90mm

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Filter: Manual

(4) RKC pressure automatic feedback system which can adjust the screw speed automatically.

(5) Material of barrel heater: Cast aluminums with stainless steel insulation layer.

(6) Metering pump, rotation speed: 0-45 rotation.

(7) Ceramic heating rings for spinneret with SS insulating layer. Heating power: 4kw

(8) Spinneret components: 2 sets

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Special designed roller guider to separate the yarn in the tank easily.

3. Drying system:1 set

4. Seven roller stretching unit A

(1) Five variable diameter rollers and two steel rollers.

(2) Max drafting force: 1000 daN.

(3) Steel box with accurately grind gear makes the rollers run smoothly.

5. Double layers hot blast stretching oven: 2 sets

(1) Heating power: 23KW×2

(3) Oven length: 5000 mm

6. Seven roller stretching unit B

(1) Six variable diameter rollers and one embossing roller.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

7. Spool winder

Specification list:

Pictures:
