Product Details
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per year
Material: |
PET Chips |
Application: |
Mesh Protection Net |
Yarn Size: |
0.1-0.25mm |
Capacity: |
125kg/h |
Brand: |
RS |
Screw L:D: |
30:1 |
Speed: |
160m/min |
Material: |
PET Chips |
Application: |
Mesh Protection Net |
Yarn Size: |
0.1-0.25mm |
Capacity: |
125kg/h |
Brand: |
RS |
Screw L:D: |
30:1 |
Speed: |
160m/min |
Monofilament Extrusion Line For Pet Mesh Protection Net 0.1-0.25mm 125kg/h
Product Description:
1. Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～80 rpm.
(2) L:D: 30:1, Material of screw: 38CrMoALA ,
(3) Pressure automatic feedback system can adjust the screw speed automatically to ensure the uniform of yarn.
(4) Metering pump 30cc, rotation speed: 0-45 rotation.
(5) Round spinneret: 1 set.
2. Cooling water tank: 1 set
(1) The tank is made by SS 304.
(2) Using heating pipe, power:18KW.
3. Seven roller stretching unit A
(1) Seven variable diameter rollers which made by stainless steel 304.
(2) Steel box with accurately grind gear makes the rollers run smoothly.
(3) Built-out oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.
4. Overflow type hot water tank:1 set
(1) Tank size: 4000mm
(2) Heating power: 45KW in 2 zones
(3) The tank is made by SS 304 with insulating layer.
(4) Water circulating water pump 2 sets
5. Seven roller stretching unit B
(1) Seven variable diameter rollers which made by steel pipe.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.
6. Double layers hot blast stretching oven: 1 set
(1) Oven length: 4000 mm
(2) Special design of hot air channel.
7. Seven roller stretching unit C, with brake resistor
(1) Seven variable diameter rollers which made by steel pipes.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.
8. Double layers hot blast stretching oven: 2 sets
(1) Oven length: 5000 mm
(2) Special design of hot air channel.
9. Seven roller stretching unit D.
(1) Seven variable diameter rollers which made by steel pipes.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.
(3) Built-in oil lubrication system which makes the gears runs steady.
10. Lubricating system: 1 set
(1) Frequency control of speed
11. Spindle winder: 300 spindles
(1) Bobbin: Spool
(2) The frame transmission is frequency control, driving motor: 2.2kw
(3) Max design speed: 0-200m/min
12. Waster yarn collectors: 1 sets
| Screw diameter | Φ85mm | ||
| Raw material | PET Chips | Filament size | 0.1-0.25mm |
| Capacity | 160Kg/H | Filament shape | round |
| Screw L:D | 30:1 | Stretching unit | 4 sets |
| Screw material | 38CrMoALA | Winder | 300 spindles |
| Max linear speed | 160m/min | Instillation power | 350Kw |
| Nozzle holes | 300 holes | Overall size | 50×2.8×2.8m |

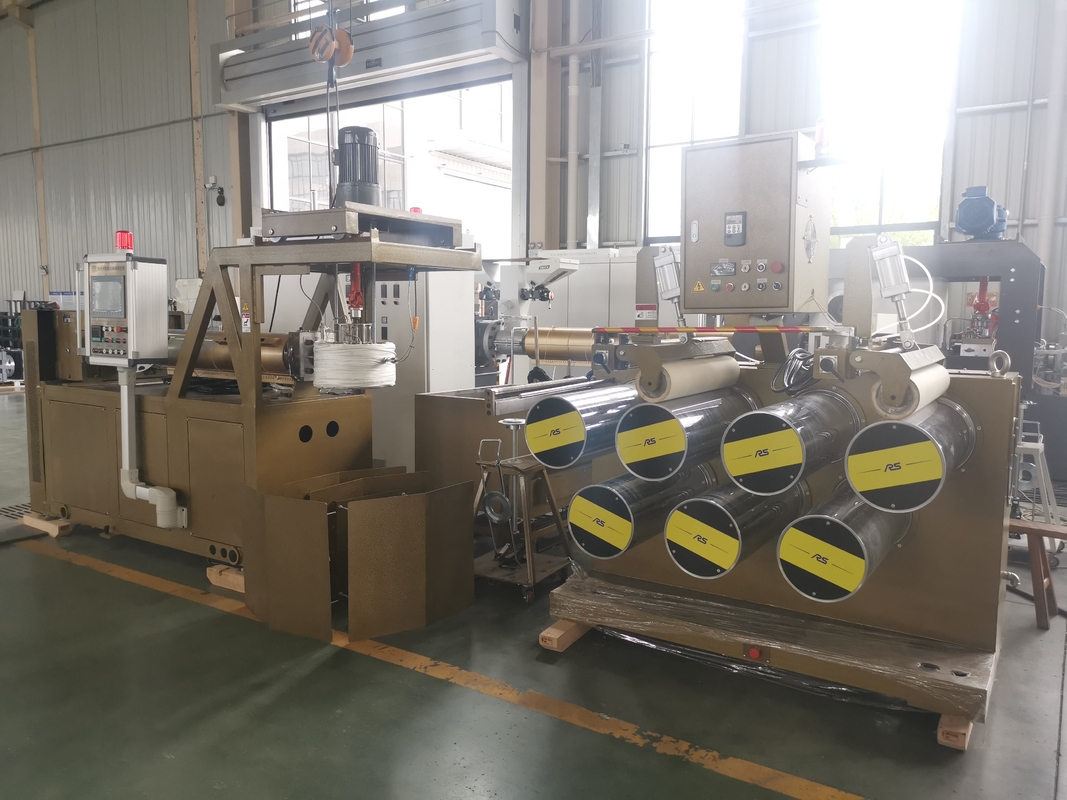

Pictures:
