CE Standard Nylon PET Monofilament Extrusion Line Grass Trimmer Line Making

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS80

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T,

Supply Ability: 50 sets per year

Get Best Price
High Light:

CE PET monofilament extrusion line

,

Nylon PET monofilament extrusion line

,

Nylon monofilament extruder

Raw Material:
Nylon
Sharp:
Twist
Capacity:
80kg/h
Screw Diamter:
80mm
Winder:
10 Spindles
Diameter:
1-3mm
Package:
Blister Pack
Application:
Grass Trimmer Line
Raw Material:
Nylon
Sharp:
Twist
Capacity:
80kg/h
Screw Diamter:
80mm
Winder:
10 Spindles
Diameter:
1-3mm
Package:
Blister Pack
Application:
Grass Trimmer Line
CE Standard Nylon PET Monofilament Extrusion Line Grass Trimmer Line Making

Monofilament Extrusion Line Used For Nylon Twist Nylon Grass Trimmer Line 80kgh



Product Description:



1. Extruder

(1) Screw diameter: 80mm;

(2) L:D: 30:1; material of screw: 38CrMoALA ;

(3) Pressure automatic feedback system can adjust the screw speed automatically.

(4) Screw heater: Cast aluminums heating rings with stainless steel insulation layer.

(5) Metering pump: 1 set, rotation speed 0-45rpm.

(6) Electrical heating spinneret device: 1 set



2. Cooling water tank: 2 sets

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.

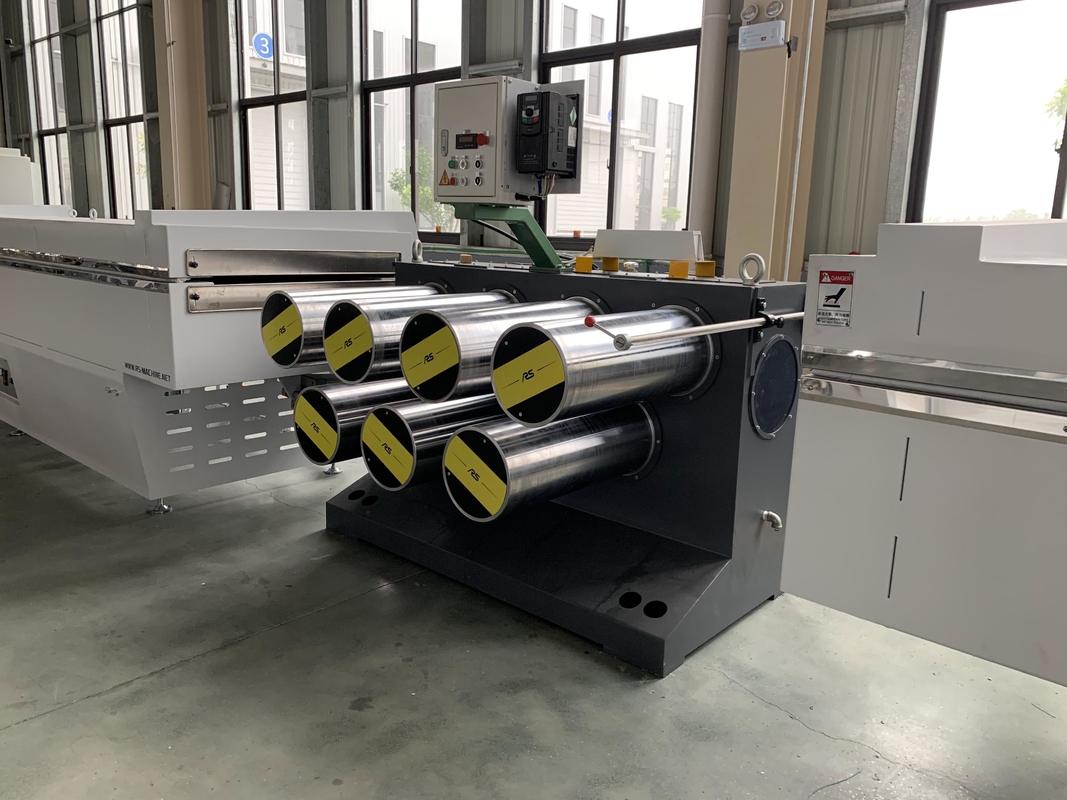

3. The first seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Jiangsu Guomao Reducer Co., Ltd.



4. Overflow type hot water tank: 1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones,

(3) Water removal device: 2 sets with suction.



5. The second seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Jiangsu Guomao Reducer Co., Ltd.



6. Hot blast oven for stretching.

(1) Oven length: 4000mm

(2) Heating power: 22.5kw, electric heating.



7. Seven roller stretching unit C, with brake resistor

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.



8. Single layers hot blast annealing oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 22.5KW



9. The Fourth seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Jiangsu Guomao Reducer Co., Ltd.



9. Spindle winder: 10 spindles

(1) Spool and bobbin are as sample.

(2) Winding motor: 15KG



10. Electrical control system: 1 set



Specification:

Screw diameter Φ80mm
Raw material Nylon Filament size 1-3mm
Capacity 80Kg/H Filament shape Twist
Screw L:D 30:1 Stretching unit 4 sets
Screw material 38CrMoALA Winder 10 spindles
Max linear speed 80m/min Instillation power 250Kw
Nozzle holes 8 holes Overall size 39×2.5×2.7m




Pictures:

CE Standard Nylon PET Monofilament Extrusion Line Grass Trimmer Line Making 0
