1-3mm 60kgh Monofilament Extrusion Line High Strength Deep Sea Fishing Line

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS80

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 30 working days

Payment Terms: L/C, T/T,

Supply Ability: 50 sets per year

Get Best Price
High Light:

1mm Monofilament Extrusion Line

,

60kgh Monofilament Extrusion Line

,

1mm monofilament extruder

Raw Material:
Nylon
Capacity:
50kgh
Application:
Deep Sea Fishing Line
Diameter:
1-3mm
Power:
250kw
Screw Diameter:
80mm
L:D:
30:1
Characteristic:
High Strength
Raw Material:
Nylon
Capacity:
50kgh
Application:
Deep Sea Fishing Line
Diameter:
1-3mm
Power:
250kw
Screw Diameter:
80mm
L:D:
30:1
Characteristic:
High Strength
1-3mm 60kgh Monofilament Extrusion Line High Strength Deep Sea Fishing Line

Monofilament Extrusion Line For High Strength Deep Sea Fishing Line 1-3mm 60kgh



Product Description:



1. Extruder: 1 set

(1) Screw diameter: 80mm, Rotation speed of screw: 0~80 rpm.

(2) L:D: 30:1, Material of screw: 38CrMoALA ,

(3) RKC pressure automatic feedback system which can adjust the screw speed automatically.

(4) Material of barrel heater: Cast aluminium with stainless steel insulation layer.

(5) Metering pump, rotation speed: 0-45 rpm.

(6) Round spinneret: 1 set.

(7) Two color dosing unit: 1 set



2. Cooling water tank: 1 set

(1) The tank is made by SS 304.



3. Seven roller stretching unit A

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Equip 1 pressing roller.



4. Overflow type hot water tank: 1 set

(1) Tank size: 4000mm

(2) Electric heating pipe is in the tank.

(3) Water removal device: 2 sets with suction.



5. Seven roller stretching unit B

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Equip 1 pressing roller.



6. Double layers hot blast stretching oven: 1 set

(1) Oven length: 4000 mm

(2) Heating power 23kw×2



7. Seven roller stretching unit C, with brake resistor

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Equip 1 pressing roller.



8. Double layers hot blast stretching oven: 2 sets

(1) Oven length: 5000 mm

(2) Heating power 23kw×2

(3) Special design of hot air channel.



9. Seven roller stretching unit D.

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Equip 1 pressing roller.



10. Lubricating system: 1 set

(1) Frequency control of speed

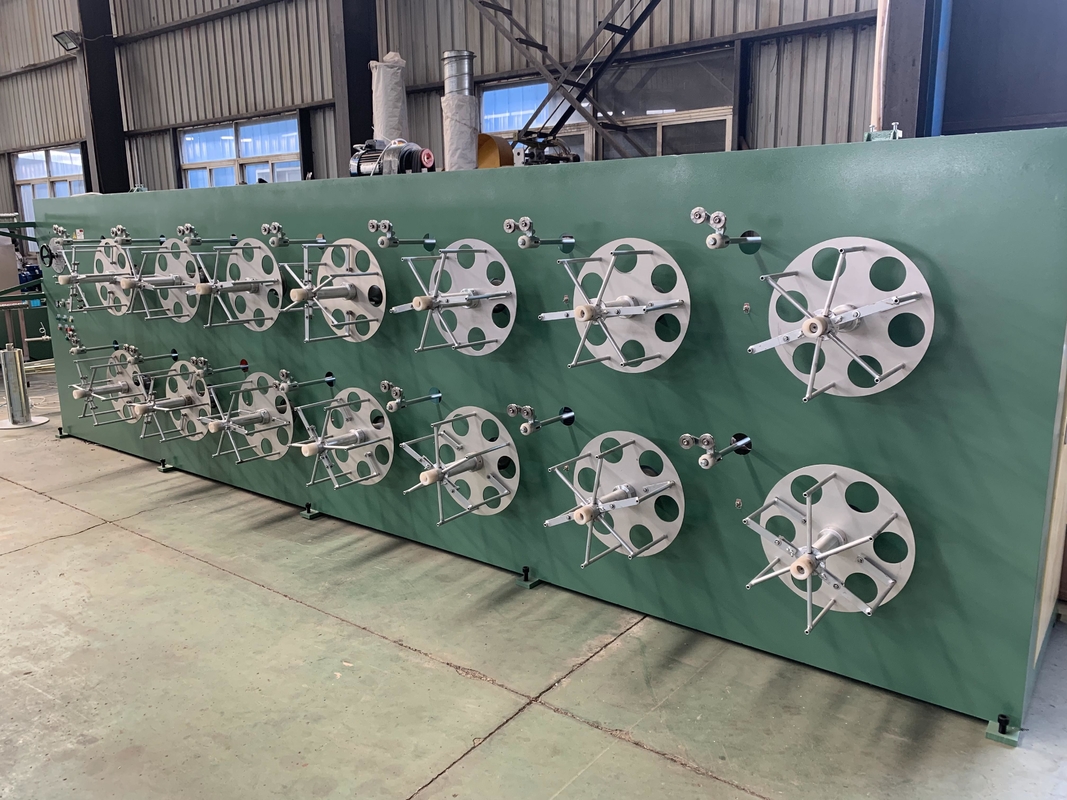

11. Spindle winder: 24 spindles

(1) Spool and bobbin are as sample.

(2) Winding motor: 15KG



12. Waster yarn collectors: 1 set





Specification:

Screw diameter Φ80mm
Raw material Nylon Filament size 1-3mm
Capacity 80Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 4 sets
Screw material 38CrMoALA Winder 8 spindles
Max linear speed 160m/min Instillation power 250Kw
Nozzle holes 6 holes Overall size 48×2.8×2.8m




Picture:

1-3mm 60kgh Monofilament Extrusion Line High Strength Deep Sea Fishing Line 0
