AA Grade Polyester Monofilament Extrusion Line For Zipper Teeth

1. Extruder: 1 set

(1) Screw dia.: 105mm;

(2) L:D: 30:1; Material of screw: 38CrMoALA; The screw is special design for PET bottle flakes and PET granular.

(3) Hard tooth reducer: Jiangsu Haoke Gearbox.

(4) RKC Pressure automatic feedback system which can adjust the screw speed automatically

(5) Melt filter: 3.5m2 double position filter changer

(6) Pressure sensor and gauges: Shanghai Zhaohui

(7) Equip magnet base with window.

(8) 100cc Metering pump:1 set

(9) Driving power of metering pump: 3.7kw,0-45 rpm

(10) Heater: Electric heating ring.

(11) Spinneret device: 1 Set

2. Cooling Water Tank:1 set

(1) The tank is made by Stainless Steel 316.

(2) Use big window with double spotlight.

3. Seven roller Stretching unit A, 0-40m

(1) Roller size: φ270×750×7,

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(5) The center height is 1100mm

4. Hot water Tank:1 set

(1) Size (L×W×H) : 4000×800×1100 mm

(2) Heating power: 35KW; Electrical heating.

(3) Material is stainless steel 304 with heat preservation.

(4) Equip one moisture absorption device: 4KW

5. Seven rollers stretching unit B: 0-160m

(1) Roller size: φ270×750×7,

(2) Power of motor: 15KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Equip one pressing rollers

(5) The center height is 1100mm

6. Single layers hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 23KW

(3) Oven length: 4300 mm

7. Seven rollers stretching unit C: 0-180m

(1) Roller size: φ270×750×7

(2) Power of motor: 15KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer:Jiangsu Guomao Reducer

(5) The center height is 1100mm

8. Single layers hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 23KW

(3) Oven length: 5000 mm

9. Seven rollers stretching unit D

(1) Roller size: φ270×750×7

(2) Power of motor: 7.5KW

(3) Steel cabinet with accurately grind gear makes the roller run smoothly.

(4) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(5) The center height is 1100mm

10. Lubricating system: 1 set

11. Waster yarn collectors: 1 set

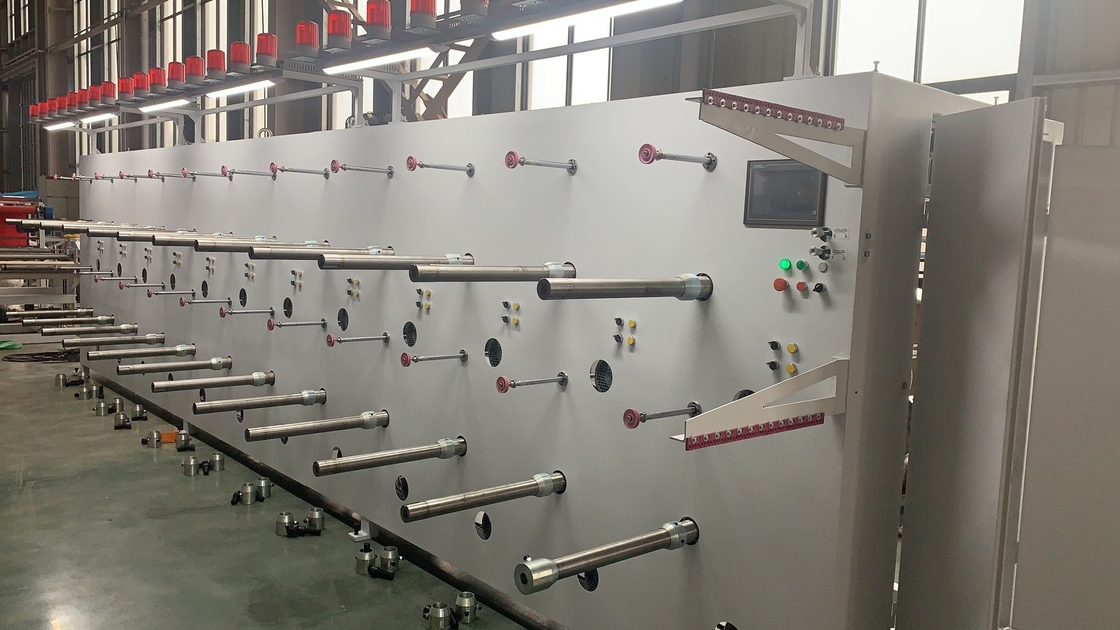

12. Winding collector:80 spindles

(1) Tube size according to the customer’s requirements.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) Winding motor: 15KG

(4) Each spindle has on/off switch. Each screen has one voltage regulator.

Specification:

Picture:
