PET Monofilament Extrusion Process

Basic Information
Place of Origin: CHANGZHOU,CHINA
Brand Name: LEAP
Certification: CE/ISO90001
Model Number: RS
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Acceptable customization
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per year
Detail Information
Material: PET Yarn Diameter: 0.15mm
Capacity: 8kgh Application: Chemical Resistant Plastic Bristle
Characteristic: Chemical Resistant Oven: 3 Sets
Voltage: 380V Tank: 1 Set
High Light:

Monofilament Extrusion Process PET

,

Monofilament Extrusion Process 0.15mm


Product Description

Monofilament Extrusion Process For PET Chemical Resistant Plastic Bristle 0.15mm



Product Description:
1. Extruder

(1) Screw diameter: 50mm;

(2) L:D: 30:1; material of screw: 38CrMoALA ;

(3) Pressure automatic feedback system.

(4) Screw heater: Cast aluminums heating rings.

(5) Spinneret device: 1 set

(6) Metering pump, rotation speed 0-45rpm.



2. Cooling water tank: 1 set

(1) The tank is made by stainless steel 304.



3. The first seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.



4. Hot blast stretching oven.

(1) Oven length: 4000mm



5. The second seven roller stretching unit

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.



6. Single layers hot blast annealing oven:

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 22.5KW



7. The third seven roller stretching unit

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.



9. Lubricating system: 1 set



10. Semi-auto winding collector

(1) Winding frame according to customer’s request.





Parameter:

Screw diameter Φ50mm
Raw material PET Filament size 0.1mm
Capacity 8Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 4 sets
Screw material 38CrMoALA Winder 228 spindles
Max linear speed 180m/min Instillation power 220Kw
Nozzle holes 216 holes Overall size 40×2.8×2.8m

Pictures:

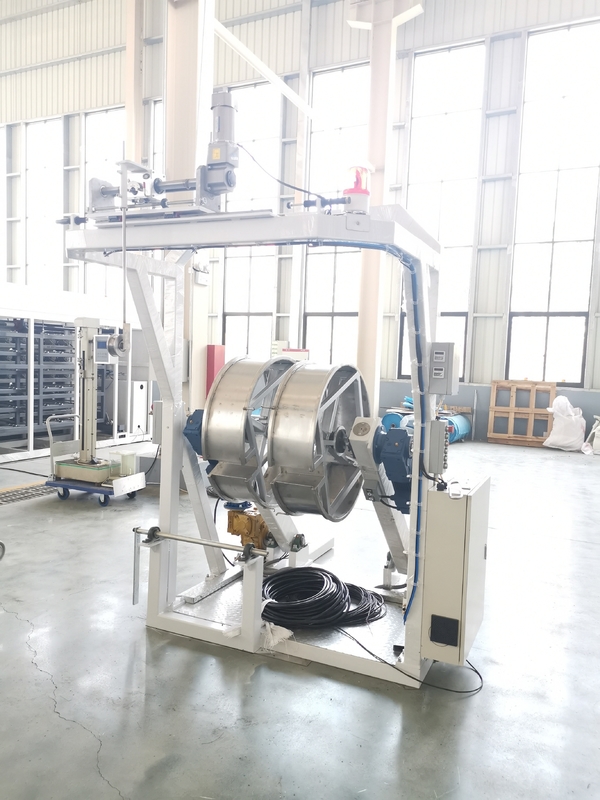

PET Monofilament Extrusion Process 0
