0.2mm HDPE Monofilament Extrusion Process For Agricultural Anti Insect Net

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS70

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

Agricultural Monofilament Extrusion Process

,

0.2mm Monofilament Extrusion Process

,

0.2mm PET monofilament extrusion line

Material:
HDPE
Yarn Diameter:
0.2
Application:
Agricultural Anti Insect Net
Net:
Knotless
Screw Diameter:
75mm
Motor Power:
180kw
Length:
38 Meters
Color:
Customized
Material:
HDPE
Yarn Diameter:
0.2
Application:
Agricultural Anti Insect Net
Net:
Knotless
Screw Diameter:
75mm
Motor Power:
180kw
Length:
38 Meters
Color:
Customized
0.2mm HDPE Monofilament Extrusion Process For Agricultural Anti Insect Net

HDPE Monofilament Extrusion Process For Agricultural Anti Insect Net 0.2mm



Product Description:

1.75×33 Extruder: 1 set
(1) Screw diameter: 75mm.
(2) L:D: 33:1, Material of screw: 38CrMoALA; The screw is suitable for HDPE chips
(3) Manual filter change:1 set
(4) Pressure automatic feedback system.
(5) Material of barrel heater: Cast aluminium.
(6) Electric heating round spinneret: 1 set
(7) Eeramic heating rings for spinneret.
(8) Spinneret components: 2 sets
(9) Metering pump, rotation speed: 0-40 rotation. Driving power: 4KW.


2.Cooling water tank: 1 set
(1) The tank is made by SS 304.
(2) Material of distributing roller


3.Seven roller stretching unit A
(1)Seven viable diameter rollers, there are five rollers are covered with rubber to resist skidding.
(2) Steel structure box with accurately grind gear.

4.Hot water tank:1 set
(1) Heating power: 27kw, two zones heater.
(2) Double pressure rollers with twin cylinder opening system .
(3) Water removal device.


5.Seven roller stretching unit B
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear.

6. Single layer hot blast annealing oven: 1 set
(1) Fan power: 2.2KW×2 sets
(2) Heating power: 23KW
(3) Oven length: 5000 mm

7.Seven roller stretching unit C.
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear.
(3) Built-in oil lubrication system which makes the gears runs steady.


8. Warping winder: 3 sets, 6 spindles




Parameter:

Screw diameter Φ75mm
Raw material HDPE Chips Filament size 0.2mm
Capacity 45Kg/H Filament shape round
Screw L:D 33:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder 4 spindls
Max linear speed 180m/min Instillation power 180Kw
Nozzle holes 200 Overall size 36×2.8×2.8m



Pictures:

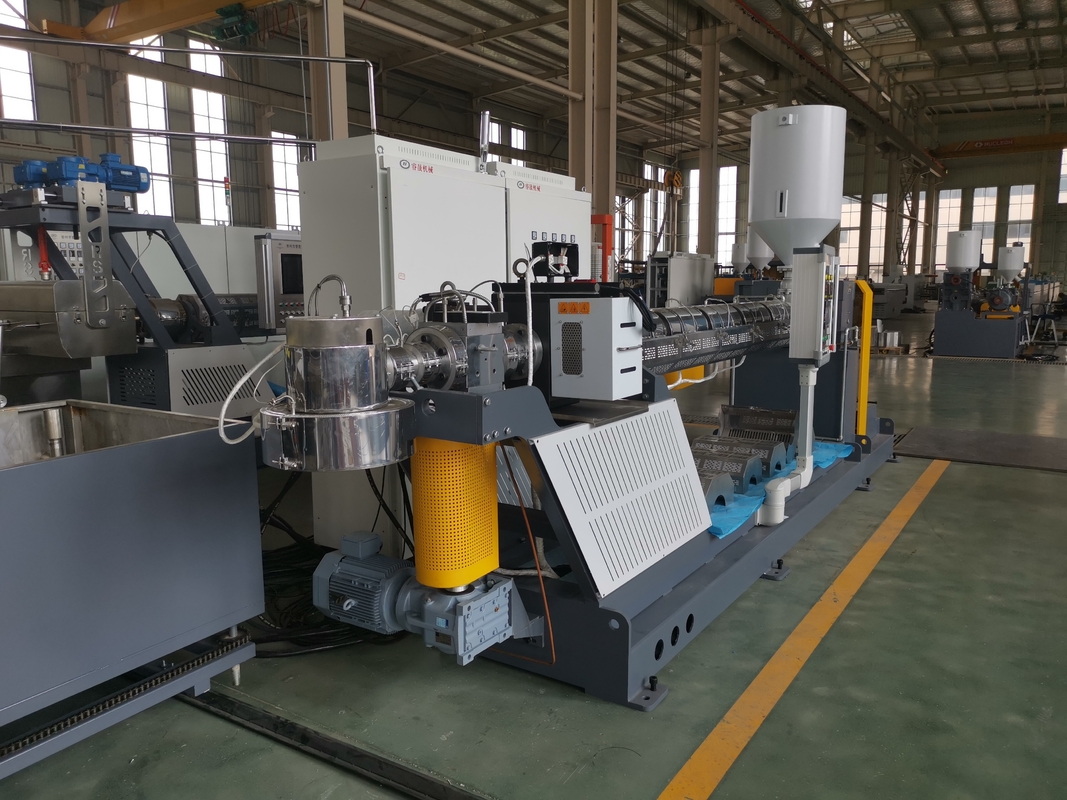

0.2mm HDPE Monofilament Extrusion Process For Agricultural Anti Insect Net 0
