220kw HDPE Monofilament Extrusion Process 4X8m Green Olive Net

Monofilament Extrusion Process For 4X8m Green Hdpe Olive Net For Harvest

Product Description:

1.80×33 Extruder: 1 set
(1) Screw diameter: 80mm, Rotation speed of screw: 0～72 rpm.
(2) L:D: 33:1, Material of screw: 38CrMoALA;
(3) Automatic screen changer:1 set
(4) Pressure feedback system.
(5) Material of barrel heater: Far infarad
(6) Electric heating round spinneret: 1 set
(7) Ceramic heating rings for spinneret with SS insulating layer make the heat evenly.
(8) Spinneret components with disassembly support.
(9) Metering pump, Frequency control of metering pump speed, driving power: 4KW.


2.Quenching tank: 1 set
(1) The tank is made by SS 304.
(2) Material of distributing roller

3. First Seven roller stretching unit
(1)Seven viable diameter rollers, there are five rollers are covered with rubber to resist skidding.
(2) Steel structure box with accurately grind gear.
(3) Built-out oil lubrication system which makes the gears runs steady.

4.Hot water tank:1 set
(1) Heating power: 27kw, two zones heater.
(2) Double pressure rollers with twin cylinder opening system.

(3) Water suction.

5. Second Seven roller stretching unit
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear.
(3) Built-in oil lubrication system which makes the gears runs steady.

6. Single layer hot blast annealing oven: 1 set
(1) Fan power: 2.2KW×2 sets
(2) Heating power: 23KW
(3) Oven length: 5000 mm

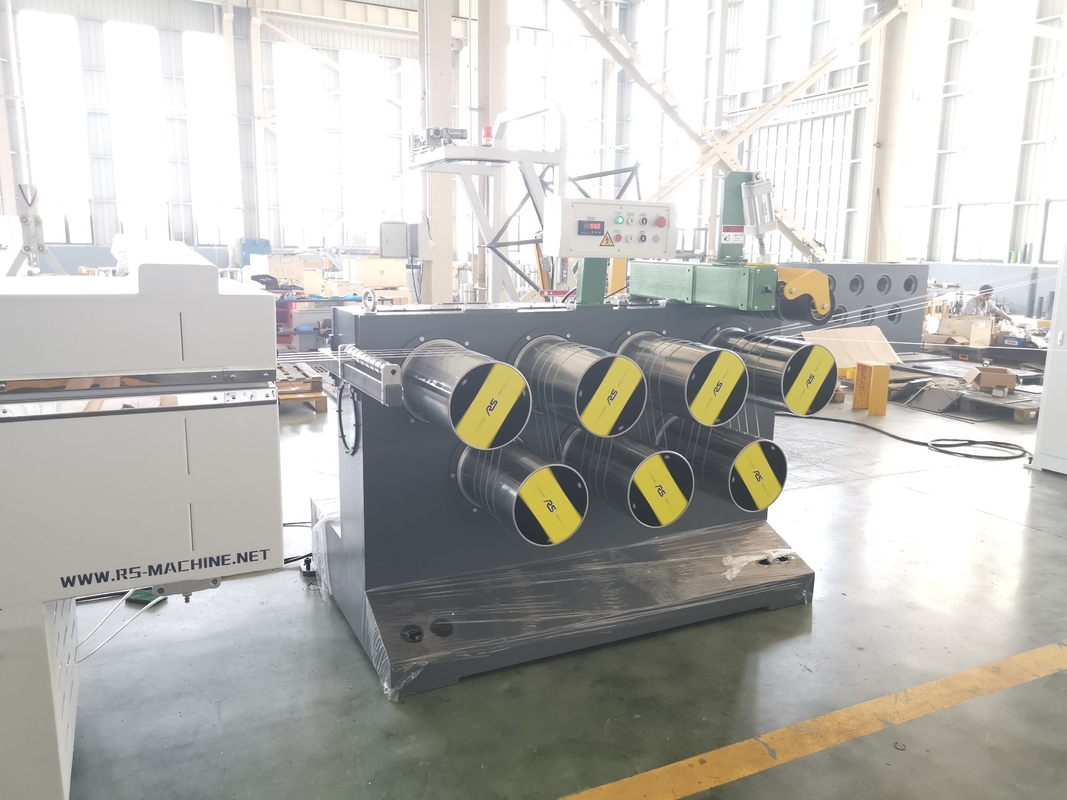

7.Third Seven roller stretching unit.
(1) Seven variable diameter rollers with hard chrome plating.
(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

8. Warping winder: 4 sets, 8 spindles
1)Motor: 150kg torque motor

Total installation power: 180KW

Overall size: 40000×1800×2500mm
