2MM Yarn Rope Making Machine For Agriculture Tomato Banana Twine
Key Attributes
Product Summary
Rope Making Machine For Polypropylene Agriculture Tomato Banana Twine 2MM Parameter: Rope diameter: 2mm Capacity: 3 tons Screw diameter: 90mm Rotation speed of screw: 0～75 rpm Installation capacity: 280 KW Product Description: 1. Extruder 1set Material: PP Virgin Screw diameter: Φ90MM Screw L/D:1:33 ...
Product Details
Banana Twine yarn rope making machine
,2MM yarn rope making machine
,2MM plastic rope manufacturing machine
Rope Making Machine For Polypropylene Agriculture Tomato Banana Twine 2MM
Parameter:
| Rope diameter: | 2mm |
| Capacity: | 3 tons |
| Screw diameter: | 90mm |
| Rotation speed of screw: | 0～75 rpm |
| Installation capacity: | 280 KW |
Product Description:
1. Extruder 1set
Material: PP Virgin
Screw diameter: Φ90MM
Screw L/D:1:33
Screw material: 38GrMoAl
Barrel total heating power and zones: 35KW
Die length: 1000MM
die total heating power and zones: 12KW
Main motor: Siemens(China) AC motor
Motor power:30KW
Screen change method: auto-belt change screen
2.Cooling water tank 1 set
Material: Stainless steel
3. Lifting Film broken pulling device: 1 set
Squeezing water rubber roller: 1 set
Lifting device 1set motor power: 3KW
Squeezing water device: 1 set
Film broken device 1set
Pulling roller 2sets
Roller outer diameter: Φ185MM
Motor power: 5.5KW
Shredding Mill Motor 2.2 kW
Blower Motor 2.2 kW
4. Stretching plate: 1set
Drying plate length: 3500MM
Drying plate width: 850MM
Drying plate thickness: 16mm
Heating power: 12KW
5. 7-roller stretching machine : 1 set
Steel roller dimension: Φ315x850mm
Stretching 5-roller motor power: 15KW
Setting 2-roller motor power: 4KW
6. Fiber system 1set
Motor power:5.5Kw
7. Waste yarn collection system: 1 set
Moto wer 7.5KW
8. Winding machine: Spindle.

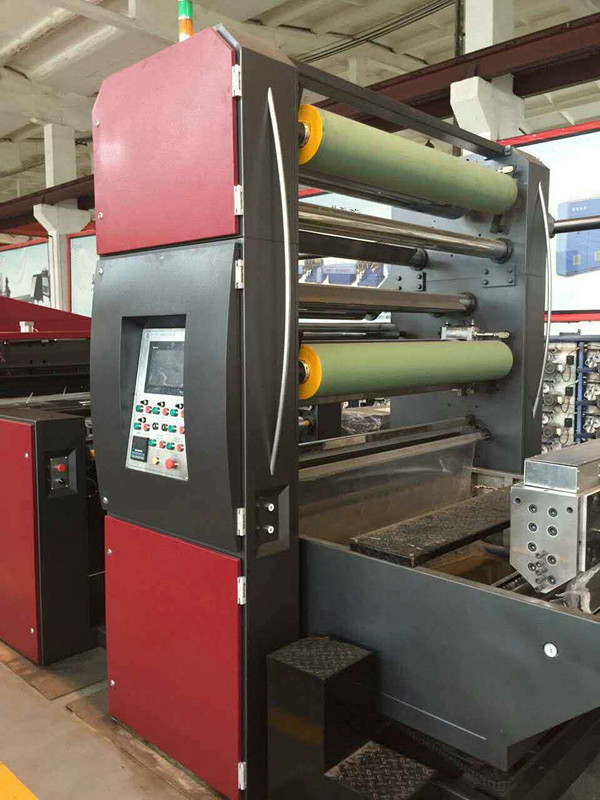

Pictures:
