Hollow Braid Plastic Rope Making Machine 120KW Polypropylene

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS90

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 60 sets per year

Get Best Price
High Light:

120KW plastic rope making machine

,

Hollow Braid plastic rope making machine

,

120KW rope manufacturing machine

Application:
Floating Rope
Material:
Polypropylene
Deiner:
280D
Capacity:
100kgh
Screw Diamter:
80mm
Technics:
Hollow
Type:
Braid
Length:
32 Meters
Application:
Floating Rope
Material:
Polypropylene
Deiner:
280D
Capacity:
100kgh
Screw Diamter:
80mm
Technics:
Hollow
Type:
Braid
Length:
32 Meters
Hollow Braid Plastic Rope Making Machine 120KW Polypropylene

Rope Making Machine For Hollow Braid Polypropylene Floating Rope



Parameter:

Product Name:

Hollow Braid Polypropylene Floating Rope

Yarn Deiner 280D
Capacity: 100kgh
Screw diameter: 80mm
Rotation speed of screw: 0~70 rpm
Running capacity: 120 KW


Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm,Screw speed: 0~72rpm.

(2) L:D: 33:1,  Screw material: 38CrMoALA ,

(3) Filter: Auto screen changer.

(4) Pressure feedback system can adjust the screw speed automatically.

(5) Far infraed barrel heater

(6) Melt pump, rotation speed: 0-45 rotation.

(7) Spinneret plate: 2 pieces



2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.



3. Dryer system:1 set



4. Frist Seven roller stretching unit: 1 set

(1) Five variable diameter rollers and two steel rollers.

(2) Steel box with accurately grind gear makes the rollers run smoothly.



5. Double layers hot blast stretching oven: 1 set

(1) Heating power: 23KW

(2) Oven length: 5000 mm



6. Second Seven roller stretching unit: 1 set

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.



7. Spool winder:as client's requirements.

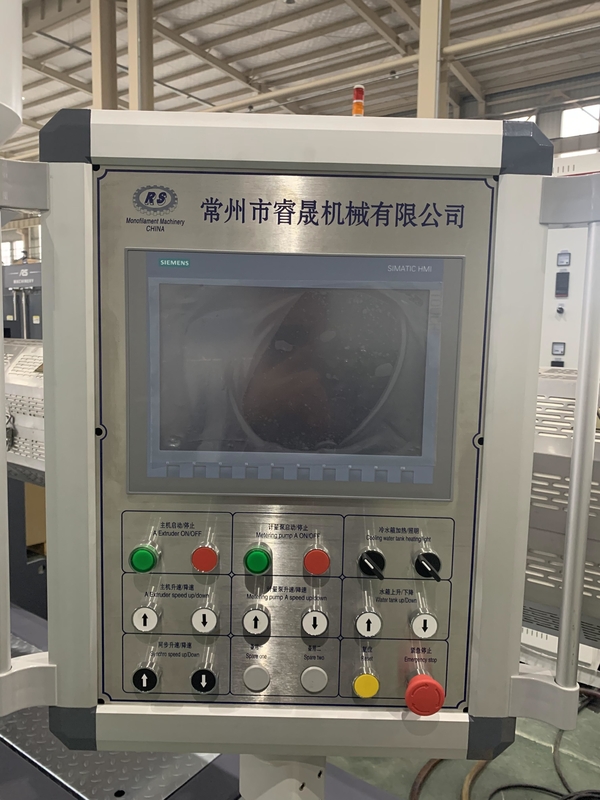

​Pictures:

Hollow Braid Plastic Rope Making Machine 120KW Polypropylene 0
