16mm Rope Twisting Machine PP Rope Machine Fishing Rope With ISO90001

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS90

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 60 sets per year

Get Best Price
High Light:

ISO90001 rope twisting machine

,

16mm rope twisting machine

,

16mm pp rope machine

Application:
Floating Rope
Material:
Polypropylene
Rope Diameter:
16mm
Capacity:
80kgh
Screw Diamter:
80mm
Technics:
Solid
Type:
Braid
Color:
Customized
Application:
Floating Rope
Material:
Polypropylene
Rope Diameter:
16mm
Capacity:
80kgh
Screw Diamter:
80mm
Technics:
Solid
Type:
Braid
Color:
Customized
16mm Rope Twisting Machine PP Rope Machine Fishing Rope With ISO90001

Rope Making Machine For 16mm Beige Nylon Fishing Rope



Parameter:

Product Name:

16mm Beige Nylon Fishing Rope

Yarn Deiner 0.3mm
Capacity: 80kgh
Screw diameter: 80mm
Rotation speed of screw: 0~70 rpm
Running capacity: 150 KW


Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm,Screw speed: 0~72rpm.

(2) L:D: 33:1,  Screw material: 38CrMoALA ,

(3) Pressure feedback system can adjust the screw speed automatically.

(4) Far infraed barrel heater

(5) Melt pump, rotation speed: 0-45 rotation.

(6) Spinneret plate: 2 pieces



2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Pushed and pulled in side way, the automatic lifting of tank.



3. Dryer system:1 set



4. Frist Seven roller stretching unit: 1 set

(1) Five variable diameter rollers and two steel rollers.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Working height: 1100mm



5. Double layers hot blast stretching oven: 1 set

(1) Heating power: 23KW

(2) Oven length: 5000 mm



6. Second Seven roller stretching unit: 1 set

(1) Seven variable diameter rollers with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Working height: 1100mm



7. Waster yarn collector: 1 set



8. Spool winder:as client's requirements.

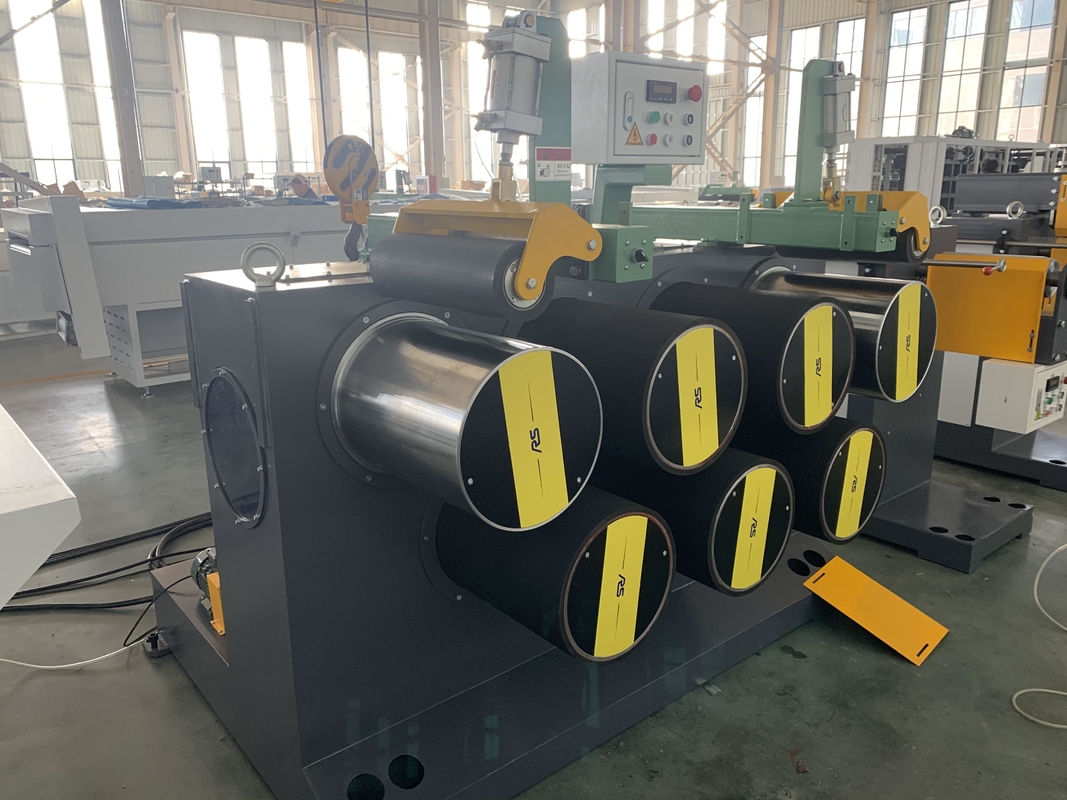

​Pictures:

16mm Rope Twisting Machine PP Rope Machine Fishing Rope With ISO90001 0
