HDPE Plastic Rope Manufacturing Machine For 3 Strands Twisted Fishing Ropes

Product Details

Place of Origin: CHANGZHOU, CHINA

Brand Name: Leap

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Get Best Price
High Light:

3 Strands plastic rope manufacturing machine

,

HDPE plastic rope manufacturing machine

,

HDPE pp rope machine

Material:
HDPE
Capacity:
100kgh
Application:
Fishing Rope
Denier:
280D
Screw Diameter:
80mm
Type:
Twisted
Strands:
3
Power:
180kw
Material:
HDPE
Capacity:
100kgh
Application:
Fishing Rope
Denier:
280D
Screw Diameter:
80mm
Type:
Twisted
Strands:
3
Power:
180kw
HDPE Plastic Rope Manufacturing Machine For 3 Strands Twisted Fishing Ropes

Rope Making Machine For HDPE 3 Strands Twisted Fishing Ropes



Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0~80 rpm.

(2) L:D: 33:1, the screw is suitable for HDPE.

(3) Automatic hydraulic filter changer:1 set

(4) Use the pressure automatic feedback system which could ensure the uniform of yarn.

(5) Electric heating round spinneret

(6) Ceramic heating rings for spinneret with SS insulating layer make the heat evenly.



2. Cooling water tank: 1 set

(1) Pushed and pulled in side way.



3. Seven roller stretching unit A: 1 set

(1) Seven pieces variable diameter roller

Five rollers are covered with rubber to resist skidding.

(2) Built-out oil lubrication system which makes the gears runs steady.



4. Hot water tank:1 set

(1) The tank is made by SS 304 with the insulating layer

(2) Double pressure rollers equip with twin cylinder opening device.



5. Seven roller stretching unit B: 1 set

(1) Seven pieces variable diameter roller, all rollers are coated with hard chrome.

(3) Built-in oil lubrication system which makes the gears runs steady.



6. Waster yarn collectors: 80KG.cm



7. Spindle winder

(1) Cops winder or spool winder.

(2) To-and-fro motor power: inverter control



Parmater:

Screw diameter Φ80mm
Raw material HDPE Filament Deiner 280D
Capacity 100Kg/H Filament shape round
Screw L:D 33:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 48 spindles
Max linear speed 120m/min Instillation power 250Kw
Nozzle holes 400 holes Overall size 29×2.8×2.8m




Pictures:

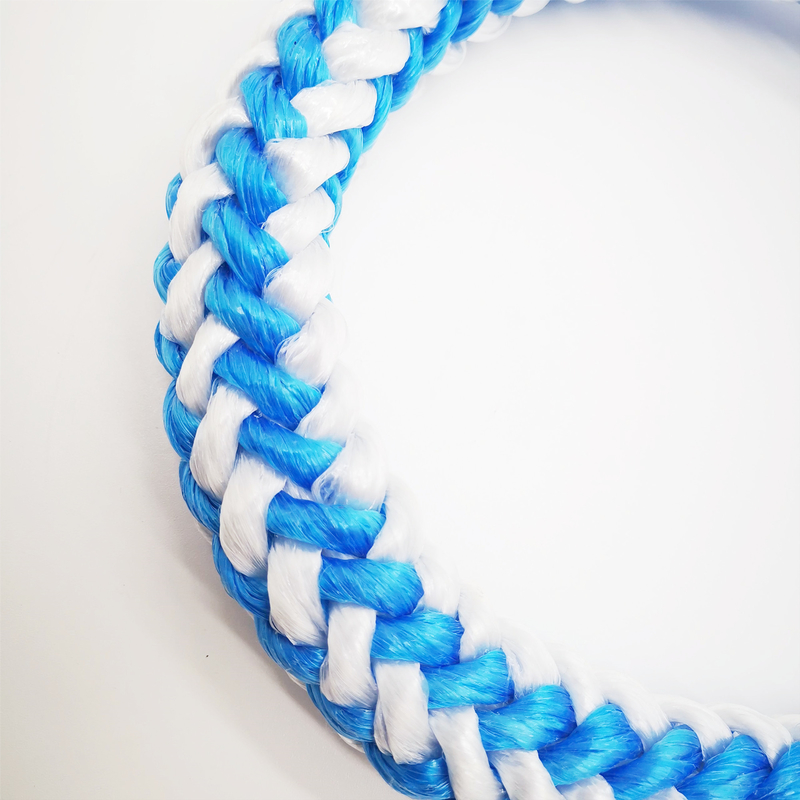

HDPE Plastic Rope Manufacturing Machine For 3 Strands Twisted Fishing Ropes 0
