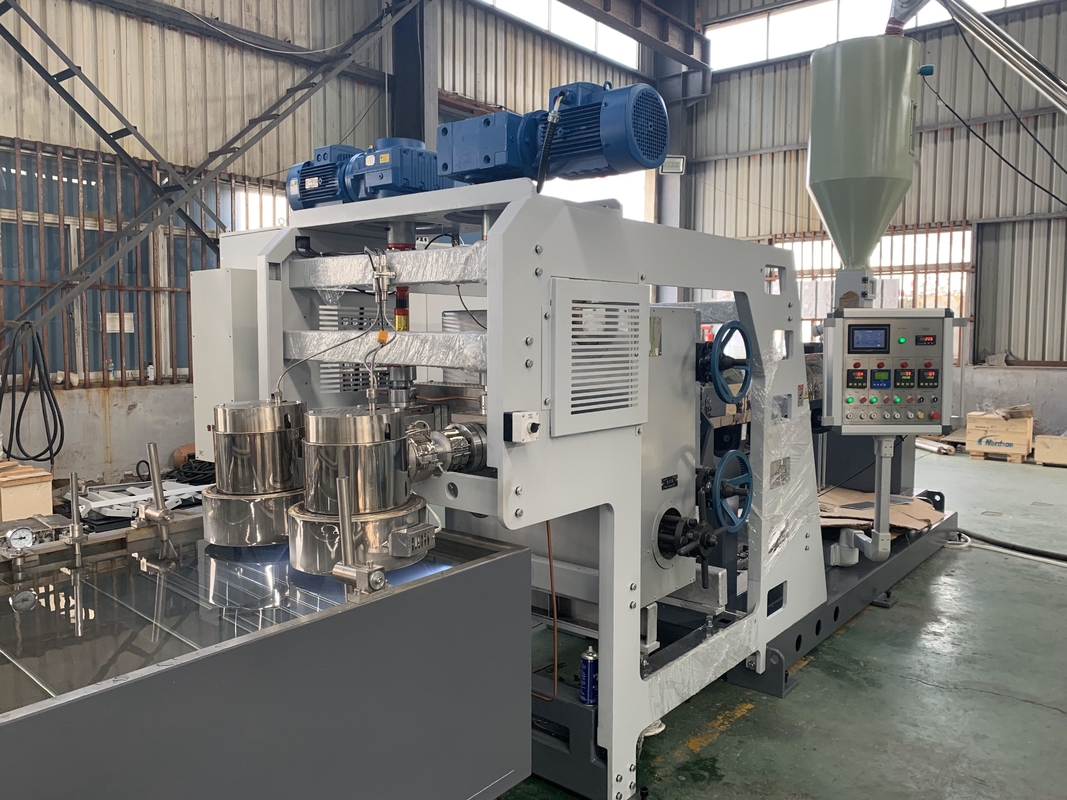

0.25mm Monofilament Yarn Making Machine ISO90001 Certification

1. Extruder: 1 set

(1) Screw diameter: 70mm, Rotation speed of screw: 0～80 rpm. Screw: Zhejiang Zhoushan.

(2) L:D: 30:1, Material of screw: 38CrMoALA ,

(3) Material of barrel heater: Cast aluminium with stainless steel insulation layer.

(4) Metering pump: 1 set, rotation speed: 0-45 rotation.

(5) Customized hopper: 1 set

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

3. Seven roller stretching unit A

(1) Seven variable diameter rollers, material: steel roller with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

4. Overflow type hot water tank:1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones,

(3) Water circulating water pump 2 sets

5. Seven roller stretching unit B

(1) Seven variable diameter rollers, material: steel roller with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

6. Hot blast stretching oven: 1 set

(1) Oven length: 4000 mm

7. Seven roller stretching unit C, with brake resistor

(1) Seven variable roller, material: Steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

8. Hot blast annealing oven: 2 sets

(1) Heating power: 22.5kw

(2) Special design of hot air channel.

9. Seven roller stretching unit D.

(1) Seven variable roller, material: Steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

10. Lubricating system: 1 set

(1) Frequency control of speed

11. Spindle winder: 180 spindles

(1) Bobbin: Cops winder.

(2) Winding motor: 5KG

(3) Max design speed: 0-180m/min

12. Waster yarn collectors: 1 set

(1) Torque motor power: 80KG.cm
