380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T,

Supply Ability: 50 sets per year

Get Best Price
High Light:

380V Monofilament Extrusion Process

,

PP Monofilament Extrusion Process

,

380V PP monofilament extrusion line

Capacity:
125kg/h
Raw Material:
PP Virgin
Screw Diameter:
100mm
Application:
Concrete
Name:
Concrete Synthetic Macro Fiber
Control:
PLC
Pattern:
Porfile
Voltage:
380V
Capacity:
125kg/h
Raw Material:
PP Virgin
Screw Diameter:
100mm
Application:
Concrete
Name:
Concrete Synthetic Macro Fiber
Control:
PLC
Pattern:
Porfile
Voltage:
380V
380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber

PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber In Bundls



Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90 mm, Rotation speed of screw: 0~60 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA;

(3) Hard tooth reducer: Jiangsu Haoke Reducer Co., Ltd

(4) Filter: Auto screen changer.

(5) RKC Pressure automatic feedback system.

(6) Material of barrel heater: Cast aluminium.

(7) Electric heating round spinneret: 1 set

(8) Metering pump 100cc/rpm, rotation speed: 0-40 rotation.





2. Cooling water tank: 1 set

(1) The tank is made by SS 304.



3. Seven roller stretching unit A

(1) Seven roller variable diameter rollers, the working width 800mm,

There are five rollers are covered with rubber to resist skidding.

(2) Steel box with accurately grind gear makes the rollers run smoothly.



4. Double layer hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×4 sets

(2) Heating power: 23KW×2

(3) Oven length: 4000 mm



5. Seven roller stretching unit B.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.



6. Single layers hot blast stretching oven: 1 set

(1) Fan power of each oven: 2.2KW×2 sets

(2) Heating power: 30KW

(3) Oven length: 5000mm



7. Seven roller stretching unit C.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.



8. Spindle winder: 2 spindles



Specification:

Screw diameter Φ90mm
Raw material PP Chips Filament size customzied
Capacity 125Kg/H Filament shape Curved
Screw L:D 33:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder customzied
Max linear speed 120m/min Instillation power 350Kw
Nozzle holes 70 holes Overall size 38×2.7×2.8m


Pictures:

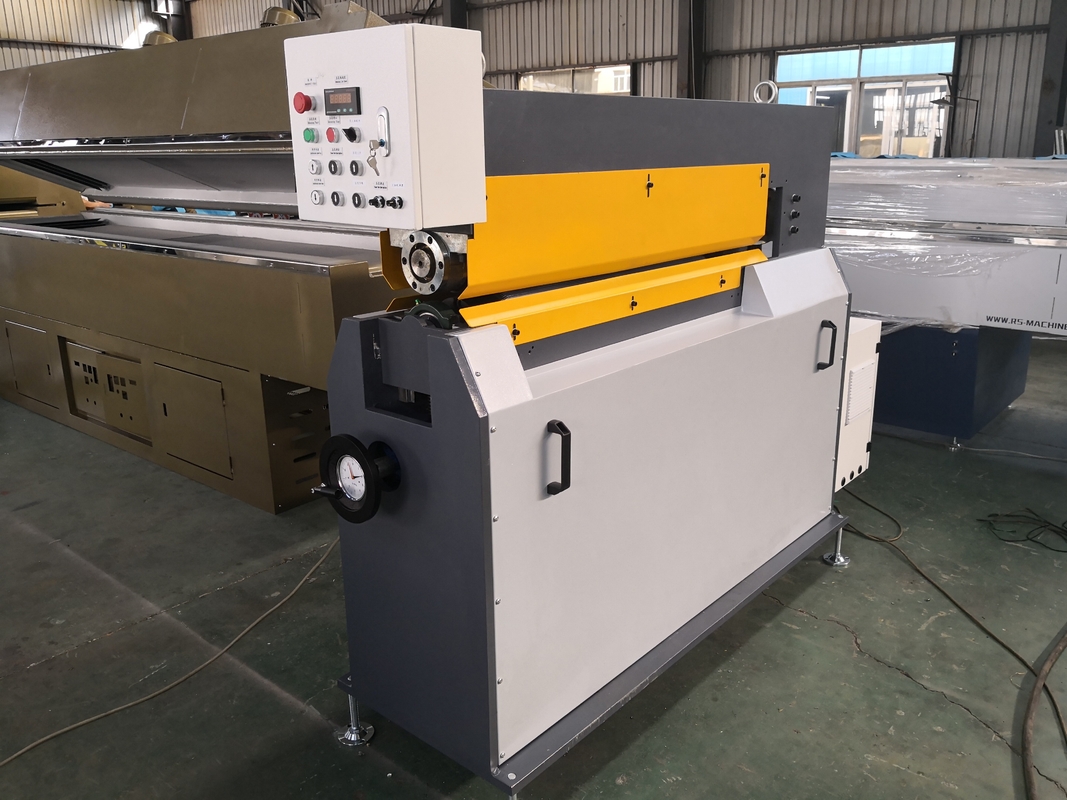

380V PP Monofilament Extrusion Process For Concrete Synthetic Macro Fiber 0
