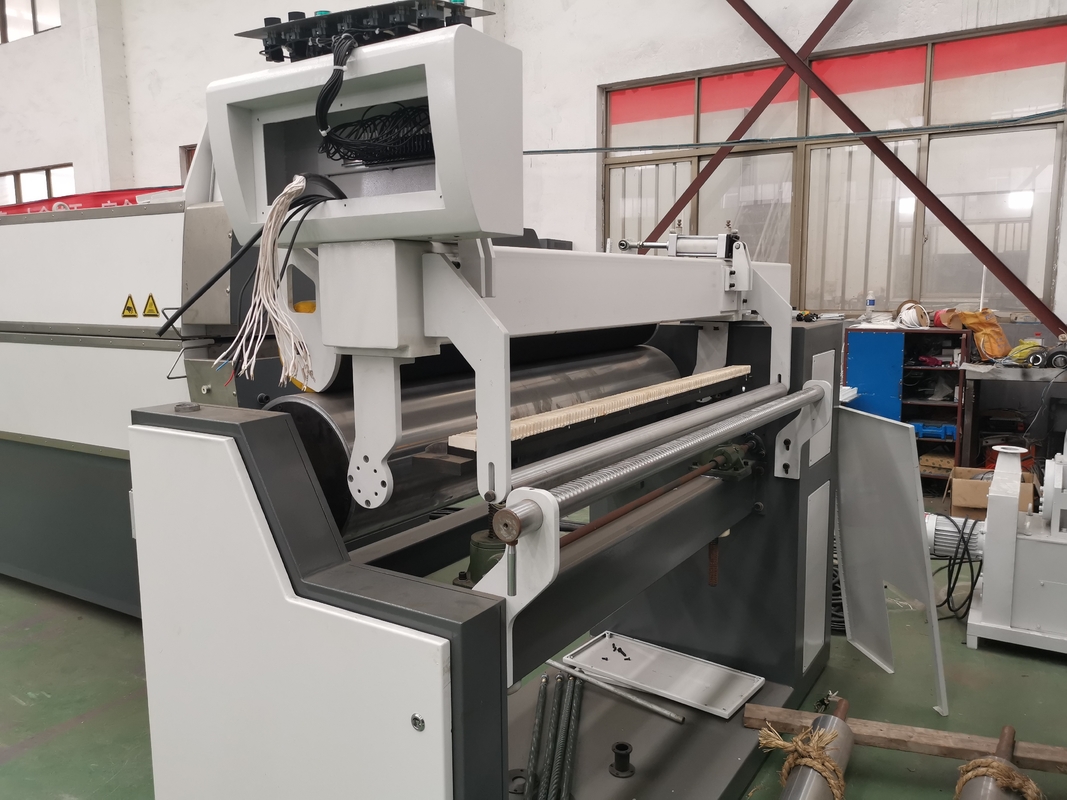

PP 8000 Dex Monofilament Yarn Making Machine Fibrillated Synthetic Grass Yarn

Artificial Grass Extruder For PP Fibrillated Synthetic Grass Yarn 8000 Dex

Product Description:

1. Extruder: 1 set

(1) Automatic screw type loading machine: 1 set

(2) Screw diameter: Φ100MM

(3) Screw L/D:1:33

(4) Screw material: 38GrMoAl and alloy plating on the surface of screw.

(5) Max. output: 300KG/H

(6) Barrel heating use cast aluminum heating band

(7) Die use inlay stainless steel heating pipe, Solid relay control the heating

(8) Die length: 1300MM

(9) Metering pump:1 set

(10) Drive power of metering pump:11kw

(11) Filter changer: Automatic double belt changer.

2. Cooling water tank: 1 set

(1) Material: Stainless steel 304.

3. Filter lifting and dry system: 1 set

(1) Water removal plate: 2 sets

(2) Squeeze device: 1 set

(3) Lifting device: 1 set,

4. Film slitting device: 1 set

(1) Material of cutter shaft: Aluminum

(2) The cutter shaft can be adjusted up and down and around.

5. Drawing rollers: 2 sets

(1) Outside diameter of roller: 180mm (Bearing: TWB)

(2) Motor power: 5.5kw

(3) Max linear speed: 40m/min.

(4) Edge-film crushing recycling system: 1 set

6. Double layers hot blast heating oven: 1 set

(1) Oven length: 6000MM

(2) Oven width: 1600MM

(3) Heating power: 80kw

(4) Fan power: 5.5KW×2 sets

(5) Inner heating pipe, SCR temperature controller.

7. Four- roller stretching unit: 1 set

(1) Roller size: Φ415MMx1350MM (bearing: TWB)

(2) Two cooling rollers, Two heating roller and one rubber pressuring roller.

(3) Roller treatment: Hard chromium plating and mirror treatment on the surface.

Equip European standard safety protective shield.

(4) Motor power: 15KW x 2 sets

(5) Needle roller: 1 set for fibrillated.

(6) Motor power: 7.5kw

8. Two roller setting machine A: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two heating roller.

(3) Motor power: 5.5kw

7. Two roller setting machine B: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two heating roller.

(3) Motor power: 5.5kw

8. Two roller setting machine C: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two heating roller.

(3) Motor power: 5.5kw

9. Energy conservation winder (inverter control): 80 spindles

(1) Wind top line speed: 150m/min

10. Waster yarn collector: 1 set

(1) Motor power: 11Kw
