High Density PP Artificial Grass Extruder White Skiing Grass

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS120

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50 sets per year

Get Best Price
High Light:

PP Artificial Grass Extruder

,

High Density Artificial Grass Extruder

,

Skiing Grass Monofilament Extrusion Line

Raw Material:
PP
Color:
White
Screw:
120mm
Application:
White Skiing Grass
Capacity:
300kg Per Hour
Speed:
250m/min
Advantage:
High Density
Winder:
Spool
Raw Material:
PP
Color:
White
Screw:
120mm
Application:
White Skiing Grass
Capacity:
300kg Per Hour
Speed:
250m/min
Advantage:
High Density
Winder:
Spool
High Density PP Artificial Grass Extruder White Skiing Grass

Artificial Grass Extruder For High Density Natural Synthetic White Skiing Grass



Product Description:

1. Extruder: 1 set

(1) Automatic screw type loading machine: 1 set

(2) Screw diameter: Φ120MM

(3) Screw L/D:1:33

(4) Screw material: 38GrMoAl and alloy plating on the surface of screw.

(5) Barrel heating use cast aluminum heating band

(7) Die use inlay stainless steel heating pipe.

(8) Die length: 1800MM

(9) Metering pump:1 set



2. Quenching tank: 1 set

(1) Material: Stainless steel 304.



3. Filter lifting and dry system: 1 set

(1) Water removal plate: 2 sets

(2) Squeeze device: 1 set



4. Film slitting device: 1 set

(1) Cutter shaft: Aluminum

(2) The cutter shaft can be adjusted.



5. Drawing rollers: 2 sets

(1) Outside diameter of roller: 180mm

(2) Motor power: 5.5kw

(3) Edge-film crushing recycling system: 1 set



6. Double layers hot blast heating oven: 1 set

(1) Oven length: 6000MM

(2) Oven width: 1600MM

(3) Heating power: 80kw



7. Four- roller stretching unit: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two cooling rollers, Two heating roller.

(3) Roller treatment: Hard chromium plating.

(4) Needle roller: 1 set



8. Two roller setting machine A: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two heating roller.



7. Two roller setting machine B: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two heating roller.



8. Two roller setting machine C: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two heating roller.



9. Energy conservation winder (inverter control): 80 spindles



10. Waster yarn collector: 1 set



Specification:

Screw diameter Φ120mm
Raw material PP Dtex 10000
Capacity 300Kg/H Pattern fibrillated
Screw L:D 33:1 Stretching unit 2 sets
Screw material 38CrMoALA Winder 80 spindles
Max linear speed 270m/min Instillation power 450Kw
Die T-type Overall size 40×2.6×2.0m




Pictures:

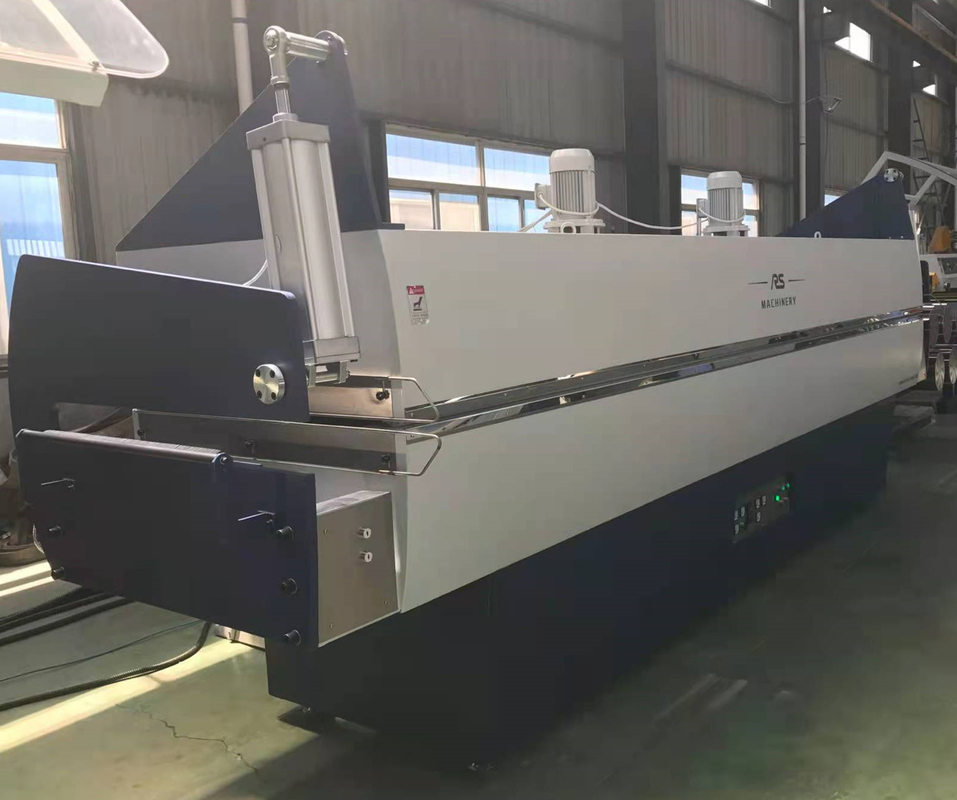

High Density PP Artificial Grass Extruder White Skiing Grass 0
