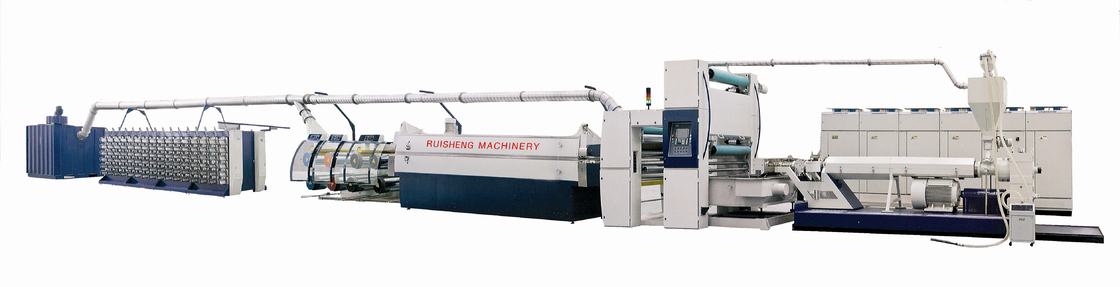

ISO90001 Approve Artificial Grass Extruder Tennis Fibrillated Turf use

Artificial Grass Extruder For Tennis Fibrillated Turf Red Yarn In Sport Fields

Product Description:

1. Extruder: 1 set

(1) Automatic screw type loading machine: 1 set

(2) Screw diameter: Φ100MM

(3) Screw L/D:1:33

(4) Screw material: 38GrMoAl and alloy plating on the surface of screw.

(5) Barrel heating use cast aluminum heating band

(7) Die use inlay stainless steel heating pipe, Solid relay control the heating

(8) Die length: 1500MM

(9) Metering pump:1 set

2. Cooling water tank: 1 set

(1) Material: Stainless steel 304.

3. Filter lifting and dry system: 1 set

(1) Water removal plate: 2 sets

(2) Squeeze device: 1 set

(3) Lifting device: 1 set,

4. Film slitting device: 1 set

(1) Material of cutter shaft: Aluminum

(2) The cutter shaft can be adjusted up and down and around.

5. Drawing rollers: 2 sets

(1) Outside diameter of roller: 180mm

(2) Motor power: 5.5kw

(3) Max linear speed: 40m/min.

(4) Edge-film crushing recycling system: 1 set

6. Double layers hot blast heating oven: 1 set

(1) Oven length: 6000MM

(2) Oven width: 1600MM

(3) Heating power: 80kw

(4) Fan power: 5.5KW×2 sets

7. Four- roller stretching unit: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two cooling rollers, Two heating roller.

(3) Roller treatment: Hard chromium plating.

(4) Motor power: 15KW x 2 sets

(5) Needle roller: 1 set

8. Two roller setting machine A: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two heating roller.

(3) Motor power: 5.5kw

7. Two roller setting machine B: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two heating roller.

(3) Motor power: 5.5kw

8. Two roller setting machine C: 1 set

(1) Roller size: Φ415MMx1350MM

(2) Two heating roller.

(3) Motor power: 5.5kw

9. Energy conservation winder (inverter control): 80 spindles

10. Waster yarn collector: 1 set
