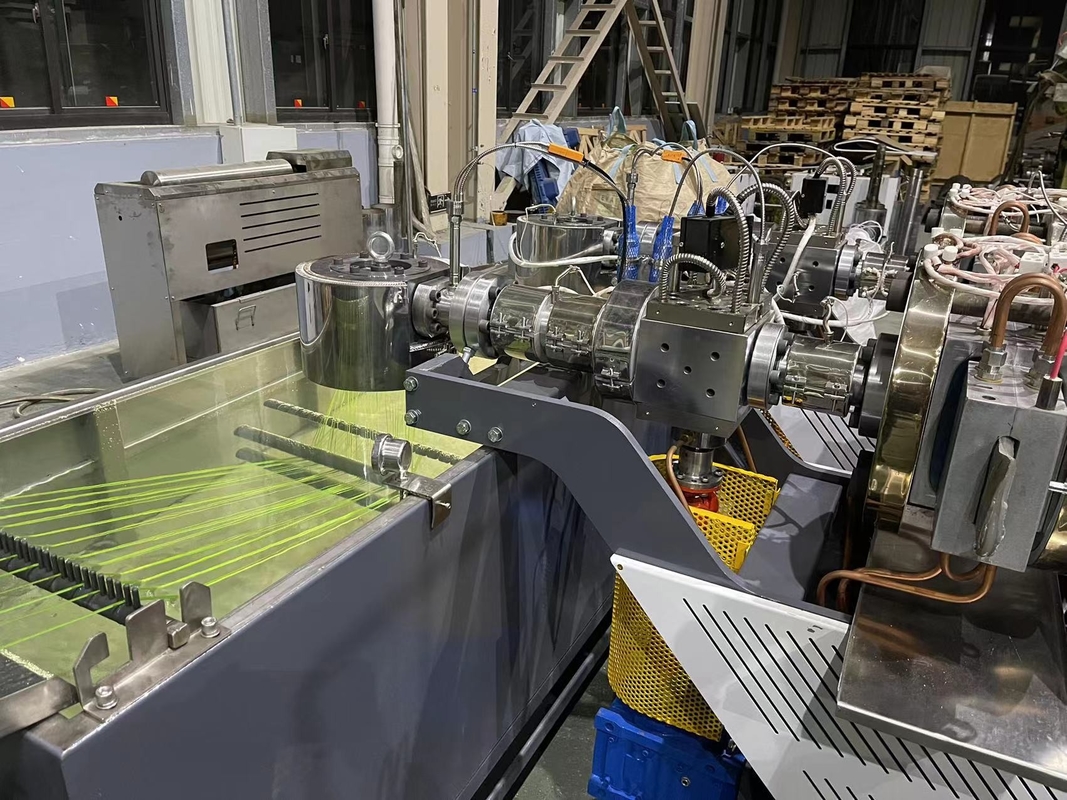

Polypropylene Curly Artificial Grass Extruder Monofilament Extrusion Machine 10Mm

(1) Main motor power: 30KW;

(2) Screw diameter: 70mm;

(3) L:D: 33:1; Material of screw: 38CrMoALA

(4) Rotation speed of screw: 0～80rpm

(5) Hard tooth-faced speed reducer: Jiangyin Gearbox manufacturer.

(6) Pressure automatic feedback system can adjust the screw speed automatically.

(7) Metering pump:2 sets, Spinneret: 1 set, components: 2 sets

(8) Filter changer: 1 set

2. Quenching tank: 1 set

(1) The tank is made by stainless steel 304.

(2) The height of tank is adjustable by motor and the horizontal pushing structure

3. Seven roller stretching unit A, 0-120m/min: 1 Set

(1) Steel roller size: φ270×700×7 The 7 rollers are made by SS 304 with hard chrome plating.

(2) The stretching unit is covered with stainless steel 304 plate

4. Hot water tank: 1 set

(1) Tank length:4000mm

(2) The water is heated by copper heating tube.

5. Water removal system: 1 set

6. Seven roller stretching unit B,0-350m/min: 1 Set

(1) Steel roller size: φ350×700×7.

(2) The stretching unit is covered with stainless steel 304 plate.

7. Waster yarn collector system: 1 set

(1) Motor power: 7.5KW

8. Air texturing machines: 24 ends

Each end:

(1) Gas heating barrel:1 sets

(2) Main conveying pipe:1 set,

(3) Heating roller and drive: 2 sets, frequency control.

(4) Tension roller: 2 sets

9. Conveyer device: 3 sets+1 piece

10. Automatic tension feedback winder: 13 spindles

(1) Motor of tension roller:0.5kw

(2) Winding motor:0.25kw
