55kw 6400 Dtex Nylon Extruder Machine Garden Decoration
Key Attributes
Product Summary
Nylon Artificial Grass Extruder For Garden Decoration Green Soft Grass 6400 Dtex Product Description: 1. 70×33 Extruder:2 sets (1) Main motor power: 18.5KW; (2) Screw diameter: 70mm; (3) L:D: 33:1; Material of screw: 38CrMoALA, speed: 0-72rpm (4) Pressure automatic feedback system with touch screen ...
Product Details
55kw nylon extruder machine
,6400 Dtex nylon extruder machine
,6400 Dtex monofilament yarn machine
Nylon Artificial Grass Extruder For Garden Decoration Green Soft Grass 6400 Dtex
Product Description:
1. 70×33 Extruder:2 sets
(1) Main motor power: 18.5KW;
(2) Screw diameter: 70mm;
(3) L:D: 33:1; Material of screw: 38CrMoALA, speed: 0-72rpm
(4) Pressure automatic feedback system with touch screen
(6) Metering pump:2 sets, Spinneret components: 1 set.
(7) Static mixer: 1 set
2. Quenching tank: 1 set
(1) The tank is made by stainless steel.
3. Seven roller stretching unit A, 0-120m/min: 1 Set
(1) Steel roller size: φ270×700×7 The 7 rollers are made by SS 304
All roller with hard chrome plating.
4. Hot water tank: 1 set
(1) Tank length:4000mm
(2) The water is heated by copper heating pipe
5. Water removal system: 1 set
6. Seven roller stretching unit B,0-350m/min: 1 Set
(1) Steel roller size: φ350×700×7.
(2) The stretching unit is covered with stainless steel 304
7. Waster yarn collector system: 1 set
8. Air texturing machines: 24 ends
Each end:
(1) Gas heating barrel:1 sets
(2) Main conveying pipe:1 set,
(3) Heating roller and drive: 2 sets
(4) Tension roller: 2 sets
9. Conveyer device: 3 sets+1 piece
10. Automatic tension feedback winder: 13 spindles
Parameter:
| Screw diameter | Φ65mm | ||
| Raw material | Nylon | Filament size | 6400Dtex |
| Capacity | 150Kg/H | Pattern | Curly |
| Screw L:D | 30:1 | Stretching unit | 2 sets |
| Screw material | 38CrMoALA | Winder | 24 spindles |
| Max linear speed | 230m/min | Instillation power | 420Kw |
| Nozzle holes | 300 holes | Overall size | 41×2.8×2.8m |

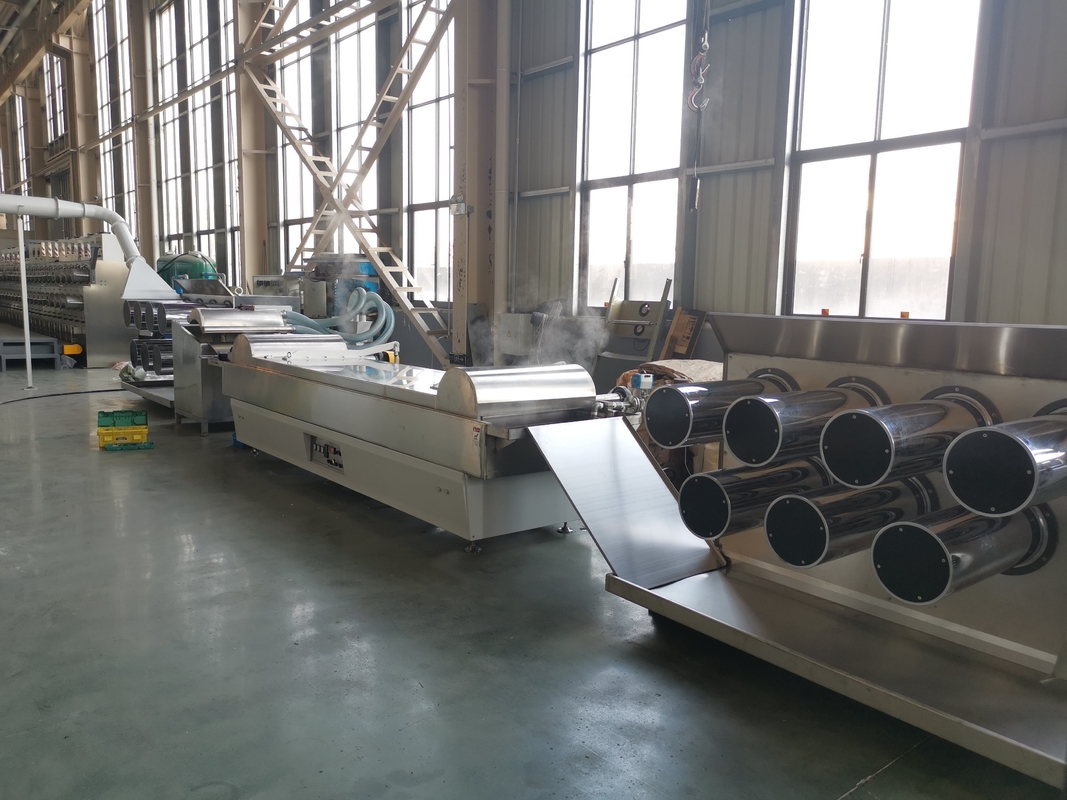

Pictures:
