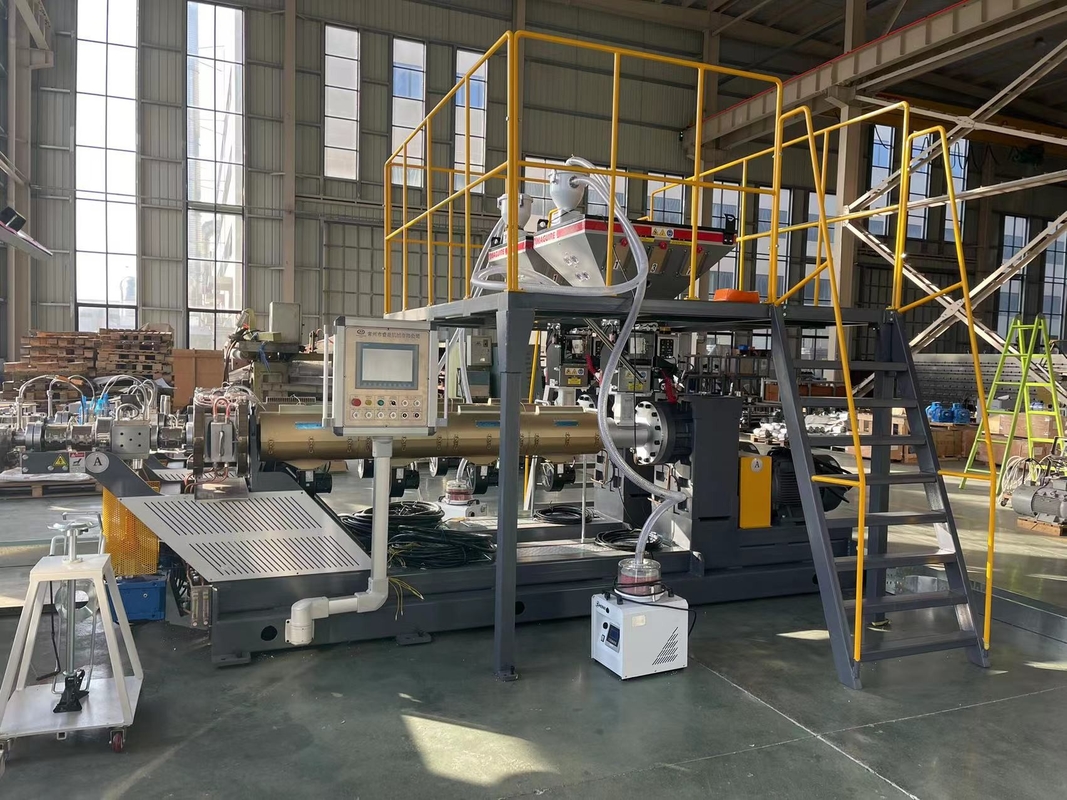

LLDPE Straight Artificial Grass Extruder For Turf Grass Pitch

(1) Screw diameter: 70mm, there is thermometer hole in the barrel .

(2) L:D: 33:1, Material of screw: 38CrMoALA ,

(3) Spinneret: 2 sets.

(4) Pressure automatic feedback system.

(5) Pressure sensor and pressure gauges: Shanghai Zhaohui.

2. Quenching tank

(1) The tank is made by SS 304 with one light and safety shield.

(2) There are double ceramic roller guiders.

3. Five roller stretching unit A, 0-35m/min

(1) Motor power: 7.5kw

(2) The steel structure box with accurately grind gear.

(3) Built-in oil lubrication system.

4. Hot water tank

(1) Overall size: 4000×1300×1100 mm

(2) Heating method: electric heating

5. Oiling heating five roller stretching unit B, 0-160m/min

(1) 4 heating roller and working width 1300mm

(2) Standard heater has self-protective and alarm function.

(3) Built-in oil lubrication system.

7. Double layers hot blast stretching oven: 1 set

(1) Working area: 5000mm L×1350mm W.

(2) Frequency control speed of blast capacity. Temperature control range: 0-200 degree.

8. Three roller setting unit C, 0-160m/min

(1) Two cooling roller:φ318×1300×3,standard rotary joint.

(2) Driving motor and reducer: 7.5kw

(3) Built-in oil lubrication system.

9. Spindle winder: 64 spindles

(1) Constant tension magnetic disk deviation transmission.

(2) Winding motor: 250w, the bobbin size customized

10. Waster yarn collector

(1) Including pipes and fan, fan power: 7.5kw

11. The installation power: 320kw;

12. Overall size: 40000×2500×2500mm;

Specification:

Pictures:
