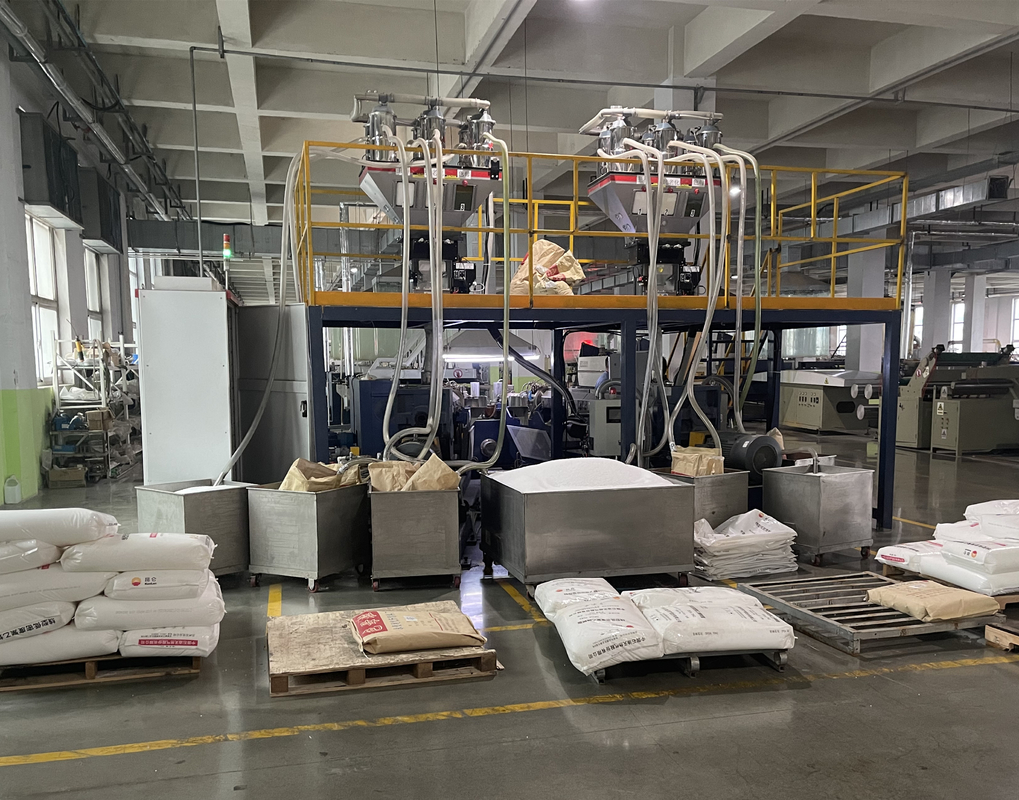

40Mm Artificial Grass Extruder Nylon Extruder Machine For Multisport Court

40Mm Artificial Grass Extruder Nylon Extruder Machine For Multisport Court

Brand Name:	LEAP
Model Number:	RS
MOQ:	1 set
Price:	Negotiable
Delivery Time:	90 working days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHANGZHOU,CHINA

Certification:

CE/ISO90001

Material:

Nylon Chips

PLY:

Screw:

65mm

Height:

40mm

Assistant Machine:

Air Tank

Winding Machine:

13 Sets

Speed:

200m/min

Air Compressor:

55kw

Packaging Details:

Acceptable customization

Supply Ability:

50 sets per year

Highlight:

40Mm Artificial Grass Extruder

Nylon Artificial Grass Extruder

40Mm nylon extruder machine

Product Description

Artificial Grass Extruder For Nylon Football Multisport Artificial Grass 40 Mm

Product Description:

1. 65×33 Extruder:2 sets

(1) Main motor power: 22KW;

(2) Screw diameter: 70mm;

(3) L:D: 33:1; Material of screw: 38CrMoALA

(4) Rotation speed of screw: 0～80rpm

(5) Pressure automatic feedback system.

(6) Metering pump:2 sets, Spinneret: 1 set.

(7) Static mixer: 1 set

2. Cooling water tank: 1 set

(1) The tank is made by stainless steel.

3. Seven roller stretching unit A, 0-120m/min: 1 Set

(1) Steel roller size: φ270×700×7 The 7 rollers are made by SS 304

4. Hot water tank: 1 set

(1) Tank length:4000mm

(2) The water is heated by copper heating pipe

5. Water removal system: 1 set

6. Seven roller stretching unit B,0-350m/min: 1 Set

(1) Steel roller size: φ350×700×7.

(2) The stretching unit is covered with stainless steel 3

7. Waster yarn collector system: 1 set

8. Air texturing machines: 24 ends

Each end:

(1) Gas heating barrel:1 sets

(2) Main conveying pipe:1 set,

(3) Heating roller and drive: 2 sets

(4) Tension roller: 2 sets

9. Conveyer device: 3 sets+1 piece

4 in 1 sets

10. Automatic tension feedback winder: 13 spindles

(1) Motor of tension roller:0.5kw

(2) Winding motor:0.25kw

Parameter:

Screw diameter	Φ65mm
Raw material	Nylon chips	Filament size	4000Dtex
Capacity	100Kg/H	Filament shape	Curly
Screw L:D	30:1	Stretching unit	2 sets
Screw material	38CrMoALA	Winder	13 spindles
Max linear speed	200m/min	Instillation power	410Kw
Nozzle holes	240 holes	Overall size	41×2.8×2.8m
