8000 Dtex Twisted Straight Grass Monofilament Extrusion For Landscaping

(1) Screw diameter: 80mm, there is thermometer hole in the barrel .

(2) Main motor: 45kw, Motor from Siemens (China)

(3) L:D: 33:1, Material of screw: 38CrMoALA ,

(4) Spinneret components and nozzles: 2 sets.

(5) Pressure automatic feedback system with touch screen

(6) Pressure sensor and gauges: Zhaohui.

(7) Euip static mixer 1 set

2. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) There are double ceramic roller guiders.

(3) Comb costed with ceramic

(4) Auotomatic lift.

3. Seven roller stretching unit A: 1 set

(1) Motor power: 7.5kw

(2) The steel structure box with accurately grind gear.

(3) Built-in oil lubrication system.

(4) Euip pressing roller.

4. Hot water tank: 1 set

(1) Overall size: 4000×1450×1100 mm

(2) Heating method: electric heating

5. Seven  roller stretching unit B: 1 set

(1) Roller working length 1350mm

(2) Standard heater has self-protective and alarm function.

(3) Built-in oil lubrication system.

(4) Euip pressing roller.

6. Hot water tank: 1 set

(1) Overall size: 4000×1450×1100 mm

(2) Heating method: electric heating

8. Seven roller setting unit C: 1 set

(1) Roller working size:φ318×1350×7

(2) Driving motor and reducer: 7.5kw

(3) Built-in oil lubrication system.

(4) Euip pressing roller.

9. Spindle winder: 66 spindles

(1) Constant tension magnetic disk deviation transmission.

(2) Winding motor: 250w

10. Waster yarn collector

(1) Including pipes and fan, fan power: 7.5kw

11. The installation power: 420kw;

Specification:

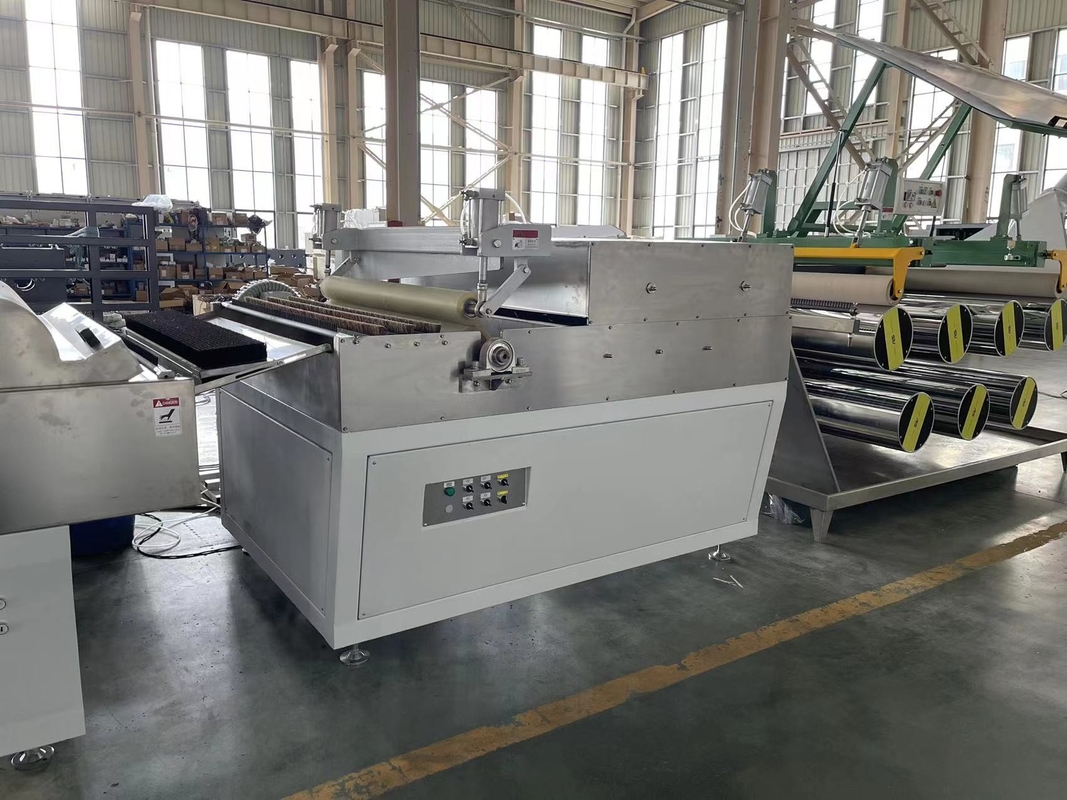

Pictures:
