PET Monofilament Extruder Machine

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50 sets per year

Get Best Price
Highlight:

250kw Monofilament Extruder Machine

,

Monofilament Extruder Machine PET

Material:
PET Chips
Application:
Bristles
Bend Recovery:
Good
Diameter:
0.1-0.25mm
Screw Size:
90mm
Length:
37 Meters
Height:
4.9 Meters
Power:
250kw
Material:
PET Chips
Application:
Bristles
Bend Recovery:
Good
Diameter:
0.1-0.25mm
Screw Size:
90mm
Length:
37 Meters
Height:
4.9 Meters
Power:
250kw
PET Monofilament Extruder Machine

PET Monofilament Extruder Machine for Bristles High Bend Recovery yarn 100kg/h​



Product Description:



1. Dryer system

2. Extruder

(1) Screw diameter: 90mm; Rotation speed: 0~72rpm.

(2) L:D: 33:1; material of screw: 38CrMoALA ;

The screw structure is special designed for PET chips.

(3) Pressure feedback system can adjust the screw speed automatically to make sure the uniform of yarn.

(4) Manual filter changer

(5) Screw heater: Far infarad

(6) Spinneret device: 1 set

(7) Heater: Electric heating ring to ensure the temperature stabilization.

(8) Two hopper doser: 1 set

3. Queching tank: 1 set

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.

4. First seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.

(4) Built-out oil lubrication system which makes the gears run steady.

5. Hot water tank: 1 set

(1) Tank length: 4000mm

(2) Heating power: 50kw, electric heating.

The temperature controlled by solid relay.

(3) The tank is made by SS 304 with the insulating layer

(4) Equip water suction unit.

6. The second seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly.

No rubber roller.

(3) Reducer is from Zhejiang Tongli Reducer Co., Ltd.

7. Single layers hot blast oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 22.5KW

(3) Special design of hot air channel which make the temperature evenly.

8. The third seven roller stretching unit

(1) Seven variable diameter rollers, material: steel pipe with hard chrome plating.

(2) Steel cabinet with accurately grind gear makes the roller run smoothly. No rubber



Parameter:

Screw diameter Φ90mm
Raw material PET chips Filament size 0.15-0.3mm
Capacity 100Kg/H Filament shape round/profile
Screw L:D 30:1 Stretching unit 3 sets
Screw material 38CrMoALA Winder 2 spindles
Max linear speed 200m/min Instillation power 260Kw
Nozzle holes 400 holes Overall size 39×2.9×2.9m
Pictures:

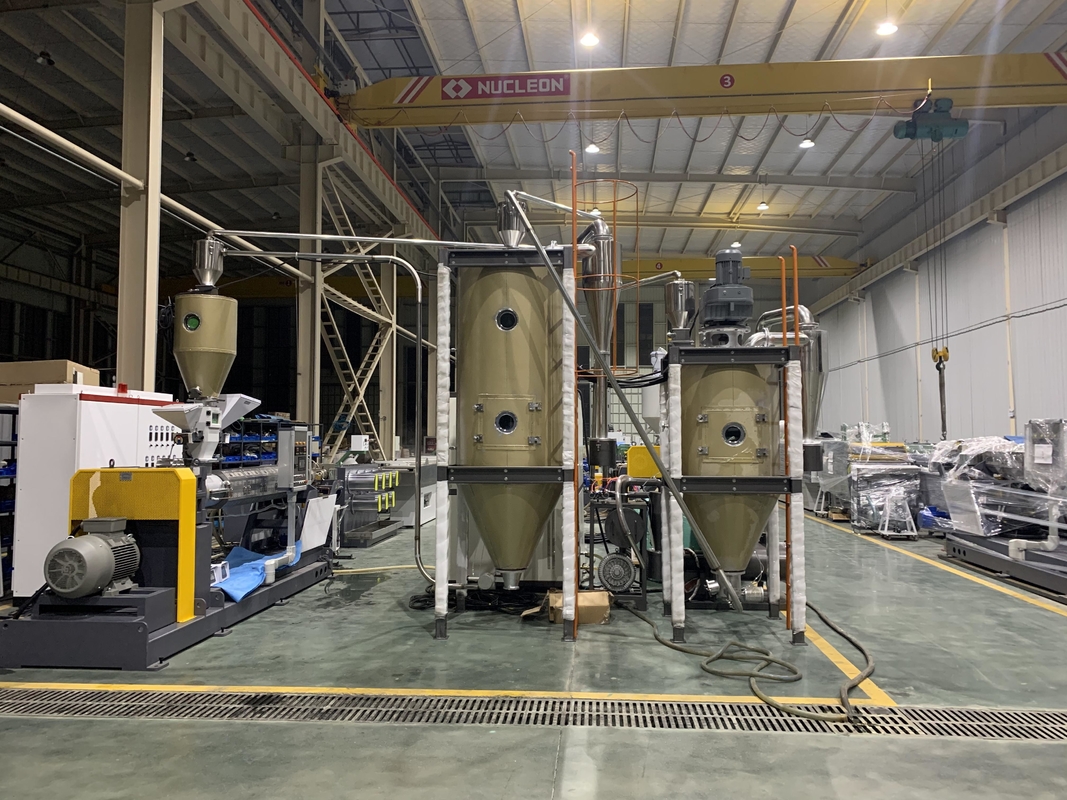

PET Monofilament Extruder Machine 0
