200kg/H Concrete Fiber Monofilament Extruder Machine With Different Pattern

PP Monofilament Extruder Machine for Concrete fiber 200kg/h With Different Pattern

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 110 mm,

Rotation speed of screw: 0～72 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA;

The screw is suitable for PP+PE Virgin.

(3) Hard tooth reducer: Jiangyin Gearbox Manufactuer Co., Ltd

(4) Filter: Automatic screen changer.

(5) Pressure automatic feedback system can adjust the screw speed automatically.

(6) Material of barrel heater: Far infarad

(7) Equip 100kg stainless steel hopper

(8) Electric heating round spinneret: 1 set

(9) Ceramic heating rings for spinneret with SS insulating layer make the heat evenly.

(10) Metering pump 100cc/rpm, rotation speed: 0-40 rotation.

2. Queching tank: 1 set

(1) The tank is made by SS 304.

(2) Material of distributing roller: stainless steel

(3) Side Push-pull model.

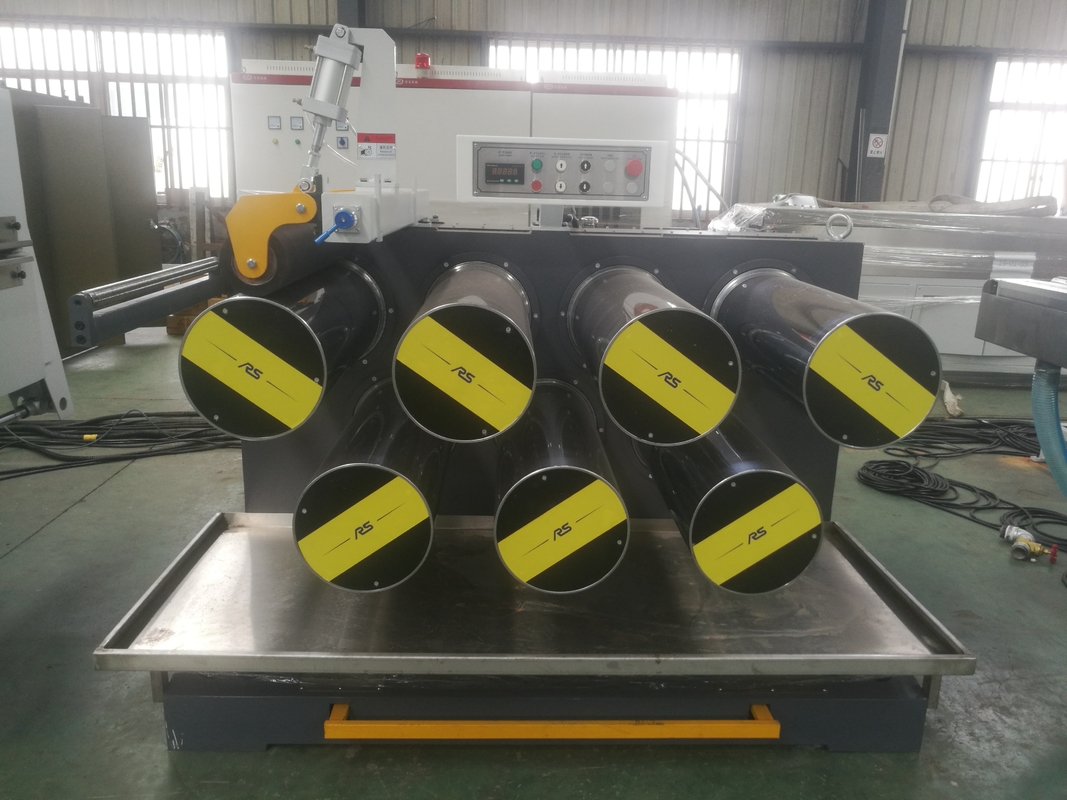

3. Seven roller stretching unit A

(1) Seven roller variable diameter rollers, the working width 800mm,

There are five rollers are covered with rubber to resist skidding.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.

(4) Built-out oil lubrication system which makes the gears runs steady.

(5) Double pressing rollers (rubber roller)

4. Double layer hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×4 sets

(2) Heating power: 23KW×2

(3) Oven length: 4000 mm

(4) Special design of hot air channel which make the temperature evenly.

5. Seven roller stretching unit B.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.

(4) Built-in oil lubrication system which makes the gears runs steady.

6. Single layers hot blast stretching oven: 1 set

(1) Fan power of each oven: 2.2KW×2 sets

(2) Heating power: 30KW

(3) Oven length: 5000mm

(4) Special design of hot air channel which make the temperature evenly.

7. Seven roller stretching unit C.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Zhejiang Tongli Reducer Co., Ltd.

(4) Built-in oil lubrication system which makes the gears runs steady.

8. Waster yarn collectors: 1 set

(1) Torque motor power: 80KG.cm

9. Spindle winder: 2 spindles.

(1) The size of bobbin is according to customer’s request.

10. Total installation power: 330KW

11. Overall size: 40000×2500×2500mm

12. Total weight: 27T
