Fishing Line Nylon Monofilament Extruder ISO90001 Certification

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS80

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T,

Supply Ability: 50 sets per year

Get Best Price
High Light:

ISO90001 monofilament extruder

,

Nylon monofilament extruder

,

Fishing Line monofilament yarn machine

Raw Material:
PA6 Chips
Capacity:
80kgh
Application:
Fishing
Diameter:
1-3mm
Power:
250kw
Screw:
90mm
L:D:
30:1
Length:
43m
Raw Material:
PA6 Chips
Capacity:
80kgh
Application:
Fishing
Diameter:
1-3mm
Power:
250kw
Screw:
90mm
L:D:
30:1
Length:
43m
Fishing Line Nylon Monofilament Extruder ISO90001 Certification

Nylon Monofilament Extruder Machine for fishing line 1-3mm 80kg/h



Product Description:



1. Extruder: 1 set

(1) Screw diameter: 90mm, Rotation speed of screw: 0~80 rpm. Screw: Zhoushan.

(2) L:D: 30:1, Material of screw: 38CrMoALA , The screw is suitable for PA6 chips.

(3) Pressure automatic feedback system which can adjust the screw speed automatically.

(4) Material of barrel heater: Infarad

(5) Metering pump, rotation speed: 0-45 rpm.

(6) Electrical heating spinneret: 1 set.

(7) Two color doer: 1 set



3. Quenching tank: 1 set

(1) The tank is made by SS 304.

(2) Equip one suction device under the yarn support plate.



4. Seven roller stretching unit A

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-out oil lubrication system which makes the gears runs steady.

(4) Equip 1 pressing roller.



5. Overflow water tank: 1 set

(1) Tank size: 4000mm

(2) Electric heating pipe is in the tank.

(3) The tank is made by SS 304 with insulating layer.

(4) Water removal device: 2 sets with suction.

(5) Water circulating pump 1.1kw



6. Seven roller stretching unit B

(1) Seven variable diameter rollers made by steel pipe.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.

(4) Equip 1 pressing roller.



7. Double layers hot blast stretching oven: 1 set

(1) Oven length: 4300 mm

(2) Heating power 23kw×2

(3) Special design of hot air channel which make the temperature evenly.



8. Seven roller stretching unit C

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.

(4) Equip 1 pressing roller.



9. Double layers hot blast stretching oven: 2 sets

(1) Oven length: 4000 mm

(2) Heating power 23kw×2

(3) Special design of hot air channel which make the temperature evenly.



10. Seven roller stretching unit D.

(1) Seven variable diameter rollers made by steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(4) Built-in oil lubrication system which makes the gears runs steady.



11. Lubricating system: 1 set

(1) Frequency control of speed

(2) Material: All made by SS 304



12. Spindle winder: 24 spindles

(1) Spool as client's request.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) The tension controlled by inverter.



13. Waster yarn collectors: 1 set

(1) Torque motor power: 80KG.cm



14. Total installation power: 320KW





Specification:

Screw diameter Φ-90mm
Raw material PA6 Filament size 1-3mm
Capacity 80Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 4 sets
Screw material 38CrMoALA Winder 24 spindles
Max linear speed 150m/min Instillation power 320Kw
Nozzle holes 20 holes Overall size 42×2.5×2.5m




Picture:

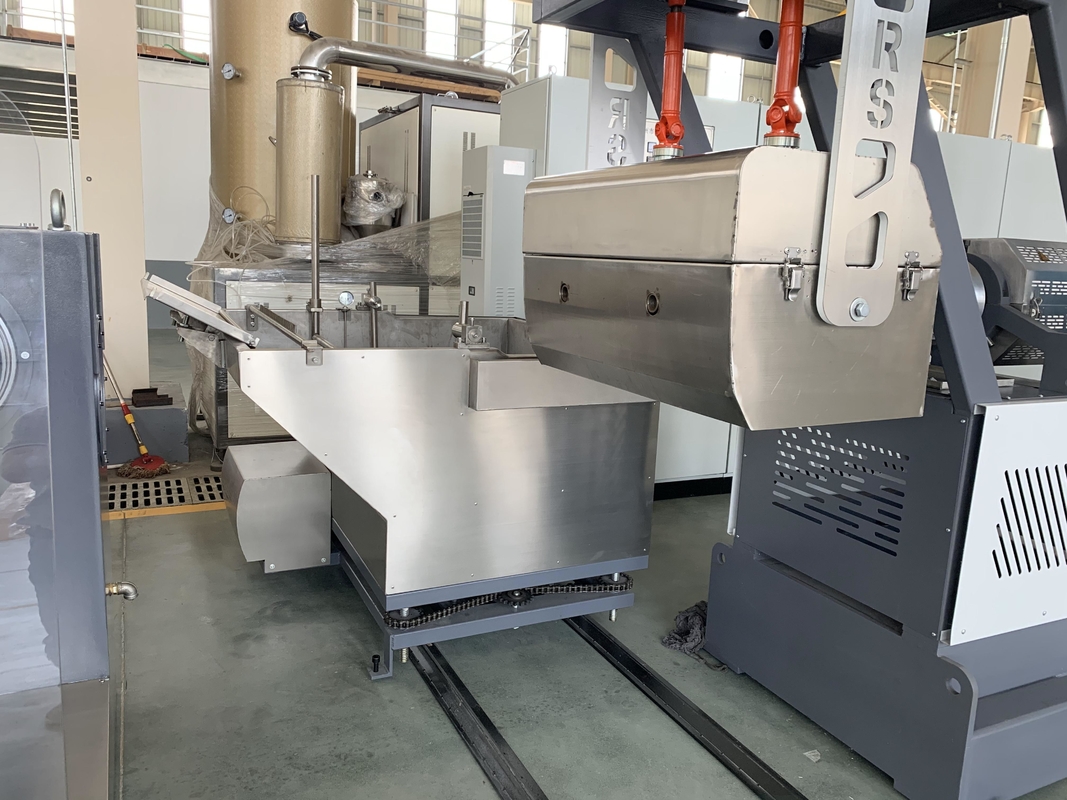

Fishing Line Nylon Monofilament Extruder ISO90001 Certification 0
