TPU Monofilament Extruder Machine For Shore Fabric 0.12-0.18mm

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

Shore Fabric Monofilament Extruder Machine

,

TPU Monofilament Extruder Machine

,

TPU monofilament extrusion plant

Raw Material:
TPU
Screw:
65mm
Diameter:
0.12-0.18mm
L:D:
30:1
Application:
Shore Fabric
Filament Qty:
150 Ends
Linear Speed:
150m/min
Godets:
4 Sets
Raw Material:
TPU
Screw:
65mm
Diameter:
0.12-0.18mm
L:D:
30:1
Application:
Shore Fabric
Filament Qty:
150 Ends
Linear Speed:
150m/min
Godets:
4 Sets
TPU Monofilament Extruder Machine For Shore Fabric 0.12-0.18mm

TPU Monofilament Extruder Machine For Shore Fabric 0.12-0.18mm 40kgh



Product Description:



1. Extruder: 1 set

(1) Screw diameter: 65mm, Rotation speed of screw: 0~72 rpm. Screw: Zhejiang Zhoushan.

(2) L:D: 30:1, Material of screw: Bi-metal , The screw is suitable for TPU chips.

(3) Pressure feedback system which can adjust the screw speed automatically.

(4) Material of barrel heater: Far infarad

(5) Metering pump: 1 set, rotation speed: 0-45 rotation.

(6) Electrical heating round spinneret: 1 set.

(7) Customized hopper: 1 set



2. Quenching tank: 1 set

(1) The tank is made by SS 304.



3. Seven roller stretching unit A

(1) Seven variable diameter rollers, material: steel roller with hard chrome plating.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Built-out oil lubrication system which makes the gears runs steady.

(4) Equip 1 pressing roller.



4. Overflow type hot water tank:1 set

(1) Tank size: 4000mm

(2) Heating power: 45KW in 2 zones, Electric heating pipe is in the tank.

(3) The tank is made by SS 304 with insulating layer.

(4) Water removal device: 2 sets with suction.

(5) Water circulating water pump:1.1kw



5. Seven roller stretching unit B

(1) Seven variable diameter rollers, material: steel roller with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady.

(4) Equip 1 pressing roller.



6. Single layer hot blast stretching oven: 1 set

(1) Oven length: 4000 mm

(2) Special design of hot air channel which make the temperature evenly.



7. Seven roller stretching unit C, with brake resistor

(1) Seven variable roller, material: Steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.

(4) Equip 1 pressing roller.



8. Single layers hot blast annealing oven: 2 sets

(1) Heating power: 22.5kw

(2) Special design of hot air channel which make the temperature evenly.



9. Seven roller stretching unit D.

(1) Seven variable roller, material: Steel pipe with hard chrome plating.

(2) Steel structure box with accurately grind gear makes the rollers run smoothly.

(3) Built-in oil lubrication system which makes the gears runs steady. Bearings: TIMKEN-TWB.

(4) Equip 1 pressing roller.



10. Lubricating system: 1 set

(1) Frequency control of speed

(2) Material: All made by SS 304



11. Spindle winder: 168 spindles

(1) Bobbin: Cops winder.

(2) The frame transmission is frequency control, driving motor: 2.2kw

(3) The tension is controlled by inverter.

(4) Winding motor: 5KG

(5) Max design speed: 0-180m/min



12. Waster yarn collectors: 1 set

(1) Torque motor power: 80KG.cm



13. Total installation power: 200KW

14. Total weight: 18T



Specification:



Screw diameter Φ65mm
Raw material TPU Filament size 0.12-0.18mm
Capacity 40Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 4 sets
Screw material Bi-metal Winder 168 spindles
Max linear speed 180m/min Instillation power 200Kw
Nozzle holes 160 holes Overall size 40×2.9×2.5m




Pictures:

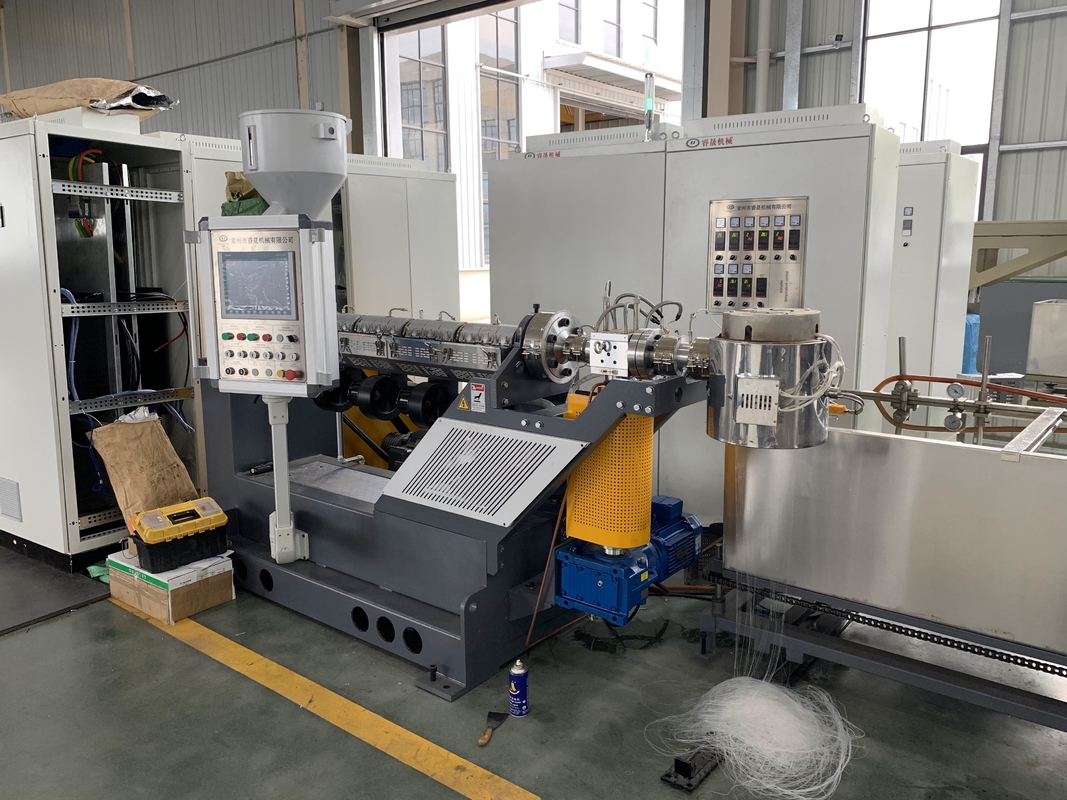

TPU Monofilament Extruder Machine For Shore Fabric 0.12-0.18mm 0
