PP Fiber Monofilament Extrusion Line ISO90001 Certification

Monofilament Extrusion Line for Cement Curved Macro PP Fiber 125kg/h

Product Description:

1. Extruder: 1 set

(1) Screw diameter: 90 mm, Rotation speed of screw: 0～60 rpm.

(2) L:D: 33:1, Material of screw: 38CrMoALA;

(3) Hard tooth reducer: Jiangsu Haoke Reducer Co., Ltd

(4) Filter: JC Times automatic hydraulic filter changer.

(5) RKC Pressure automatic feedback system can adjust the screw speed automatically.

(6) Material of barrel heater: Cast aluminium with stainless steel insulation layer.

(7) Equip 100kg stainless steel hopper

(8) Electric heating round spinneret: 1 set

(9) Metering pump 100cc/rpm, rotation speed: 0-40 rotation.

2. Cooling water tank: 1 set

(1) The tank is made by SS 304.

(2) Side Push-pull model.

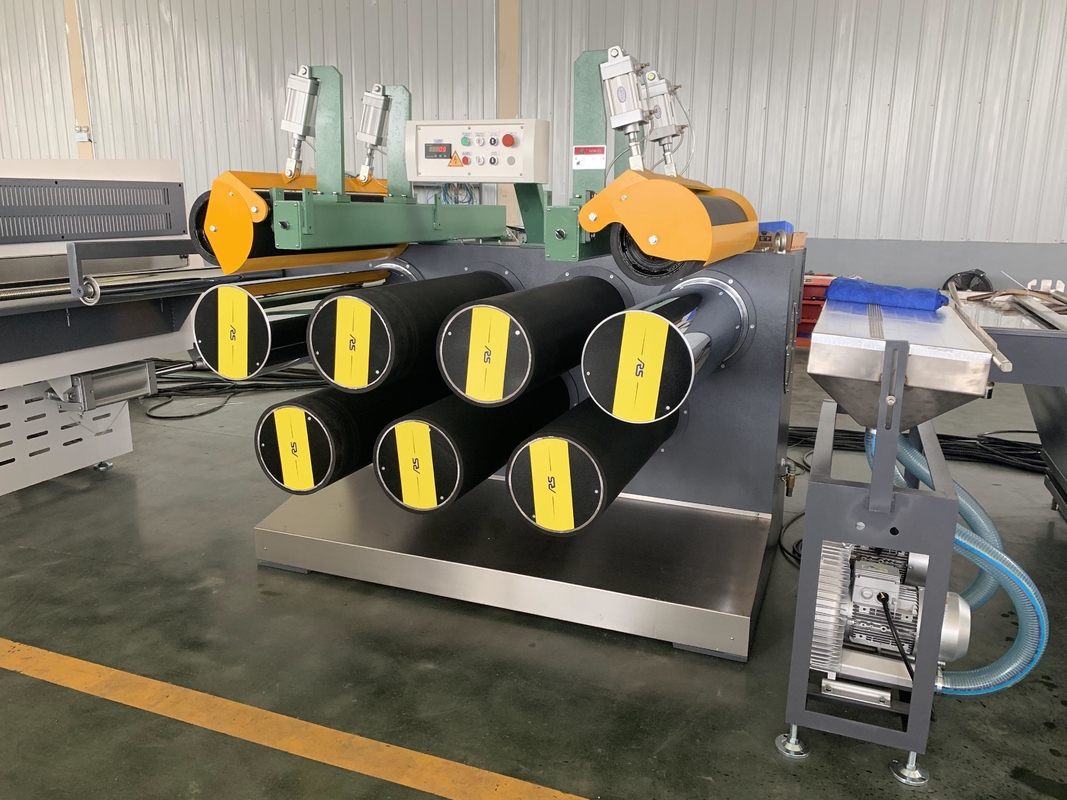

3. Seven roller stretching unit A

(1) Seven roller variable diameter rollers, the working width 800mm,

There are five rollers are covered with rubber to resist skidding.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

4. Double layer hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×4 sets

(2) Heating power: 23KW×2

(3) Oven length: 4000 mm

5. Seven roller stretching unit B.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

6. Single layers hot blast stretching oven: 1 set

(1) Fan power of each oven: 2.2KW×2 sets

(2) Heating power: 30KW

(3) Oven length: 5000mm

7. Seven roller stretching unit C.

(1) Seven roller variable diameter rollers, the working width 800mm.

(2) Steel box with accurately grind gear makes the rollers run smoothly.

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Built-in oil lubrication system which makes the gears runs steady.

8. Spindle winder: 2 spindles

Specification:
