2-4mm Recycled Polyester Monofilament Yarn Machine Multifunction

Product Details

Place of Origin: CHANGZHOU,CHINA

Brand Name: LEAP

Certification: CE/ISO90001

Model Number: RS90

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Acceptable customization

Delivery Time: 90 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per year

Get Best Price
High Light:

multifunction monofilament yarn machine

,

3mm monofilament yarn machine

,

3mm monofilament making machine

Raw Material:
Recycled Polyester
Application:
Steel Wire
Yarn Diameter:
2-4mm
Screw:
105mm
Main Motor:
55kw
Filament:
4 Ends
Capacity:
100kgh
Speed:
80m/min
Raw Material:
Recycled Polyester
Application:
Steel Wire
Yarn Diameter:
2-4mm
Screw:
105mm
Main Motor:
55kw
Filament:
4 Ends
Capacity:
100kgh
Speed:
80m/min
2-4mm Recycled Polyester Monofilament Yarn Machine Multifunction

Monofilament Extrusion Line for Recycled Polyester Steel Wire 2-4mm 100kgh



Product Description:



1. Extruder: 1 set

(1) Screw dia.: 90mm; Rotation speed: 0~100rpm.

(2) L:D: 30:1; Material of screw: 38CrMoALA;

(3) Hard tooth reducer: Jiangsu Haoke Gearbox

(4) Pressure automatic feedback system which can adjust the screw speed automatically

(5) Melt filter: 2.5m2 double position filter changer

(6) 70cc Metering pump:1 set

(7) Driving power of metering pump: 3.7kw, 0-45 rpm

(8) Spinneret device: 1 set

(9) Heater: Electric heating ring.

(10) Nozzle: 2 pieces



2. Cooling water tank: 2 sets

(1) The tank is made by stainless steel 304.

(2) The height of tank is horizontal pushing structure is conveniently to disassembly the spinneret.



3. Seven roller Stretching unit A, 0-40m

(1) Roller size: φ270×450×7,

(2) Power of motor: 7.5KW

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Built-out oil lubrication system which makes the gears run steady.



4. Hot water Tank:1 set

(1) Water tank length: 4000mm

(2) Heating power: 35KW; Electrical heating, the heating pipe are in the tank.

(3) Equip one moisture absorption device



5. Seven rollers stretching unit B: 0-160m

(1) Roller size: φ270×450×7,

(2) Power of motor: 11KW

(3) Driving motor and reducer is from Jiangsu Guomao Reducer Co., Ltd.

(4) Equip one pressing rollers



7. Single layers hot blast stretching oven: 1 set

(1) Fan power: 2.2KW×2 sets.

(2) Heating power: 23KW

(3) Oven length: 4300 mm



8. Seven rollers stretching unit C: 0-180m

(1) Roller size: φ270×450×7

(2) Power of motor: 11KW

(3) Built-out oil lubrication system which makes the gears run steady.

(6) Equip single pressing roller



9. Single layers hot blast setting oven: 1 set

(1) Fan power: 2.2KW×2 sets,

(2) Heating power: 23KW

(3) Oven length: 5000 mm



10. Seven rollers stretching unit D

(1) Roller size: φ270×450×7

(2) Power of motor: 7.5KW

(3) Built-out oil lubrication system which makes the gears run steady.

(4) Equip single pressing roller



11. Lubricating system: 1 set



12. Winding collector: 8 spindles

(1) Tube size according to the customer’s requirements.

(2) Winding motor: 15KG





Specification:

Screw diameter Φ105mm
Raw material Recycled Polyester Filament size 2-4mm
Capacity 100Kg/H Filament shape round
Screw L:D 30:1 Stretching unit 3-4 sets
Screw material 38CrMoALA Winder 8 spindles
Max linear speed 80m/min Instillation power 250Kw
Nozzle holes 2-4 Holes Overall size 40×2.8×2.8m






Pictures:

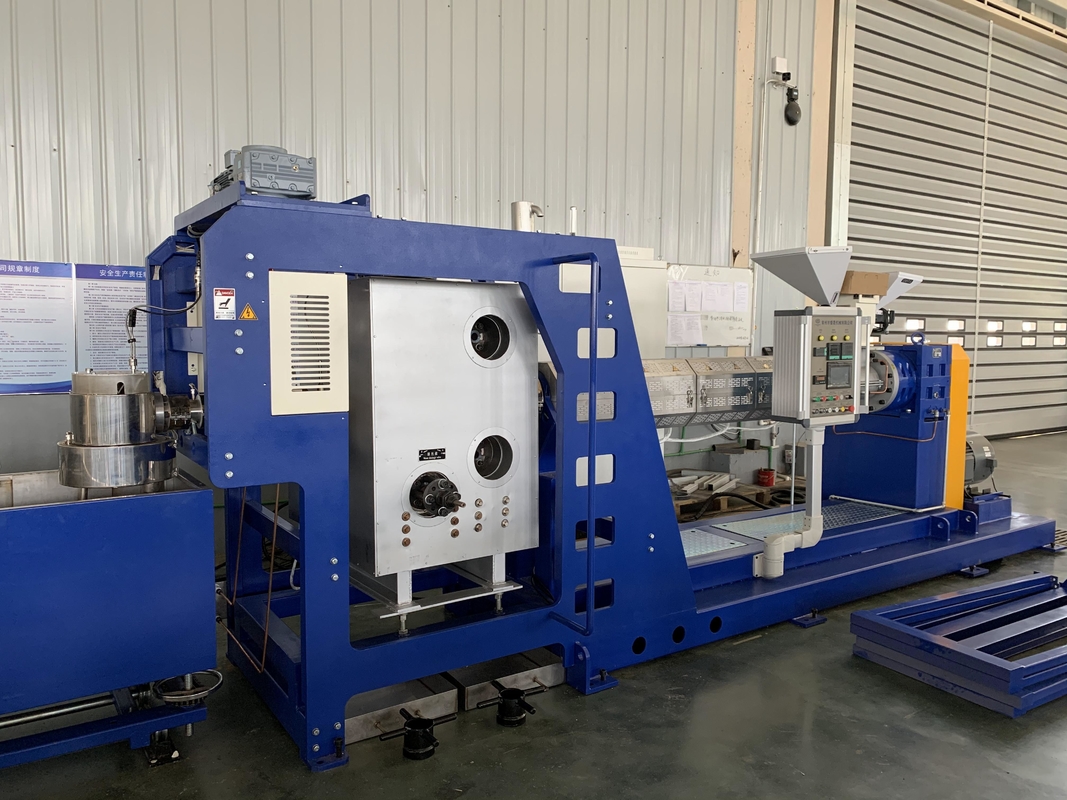

2-4mm Recycled Polyester Monofilament Yarn Machine Multifunction 0
